OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems

Price Negotiable
Price: Negotiable
MOQ: 10 packs
Delivery Time: 10 days
Brand: Amazing Energy
Product Description

OEM ODM 100Ah 5KWh 48V Lifepo4 Battery Phosphate Solar Systems


48V Lifepo4 Battery 48V 100Ah Lithium Iron Phosphate Solar 5KWh Systems

Function Parameter
Norminal Battery Energy
5120kwh
Norminal Capacity
100Ah
Norminal Voltage
48V
Internal Resistance
≤22mΩ
Cycle Life
>6000
Months Self Discharge
<3%
Charge Data
DC Normal Charge Voltage
54.75±1Vdc
Charge Mode
0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
Recommended Charger Current
≤50A
Allowed Max. Charge Current
50Adc
Charge Cut-off Voltage
54.75±1Vdc
Discharge Data
Continuous Discharge Current
50A
Allowed Max. discharge current
100A (option:200Adc)
Rang of DC discharge voltage
37.5V-54.75Vdc
Working Condition
Charge Temperature
0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
Enclosure Protection Level
IP20
Mechanical Data
Cell & Method
/
Shell material
Iron
Dimensions
482*400*177mm
Weight (lbs./kg.)
/

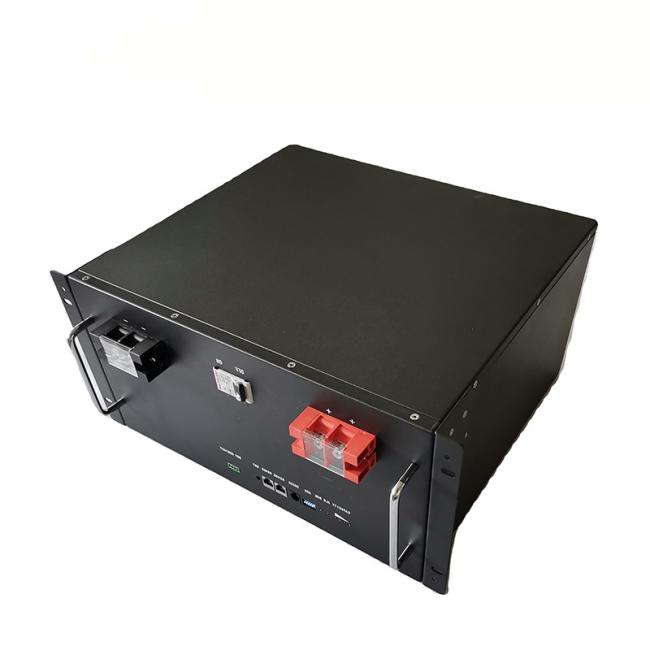

The images of 2U 48V 100Ah 5KWH battery pack



System example diagram of 48V 100Ah Lithium Iron Phosphate
Modular design lithium battery
LIFePO4 battery, Safe, Longer lIfe span. Modular deslgn, Easy to stack.
Larger energy capaclty.
Wlde temperature range of -20-25°C.

Battery Application of 48V Lifepo4 Battery

FAQ
Q1: Before order, can I have samples for testing?
A: Yes, we can provide you samples for testing firstly.



Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.



Q3: How to proceed an order?
A: 1. Contact our service & let us know your requirements or application.
2. We quote according to your requirements or our suggestions.



Q4: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
and the storage condition shall be:<35°C , 65±20%RH



Q5: What is MOQ?
A: Low MOQ, 1pc for sample checking is available.
