10Kwh Solar Powered Battery Lifepo4 48v 200ah Charged By Solar Panels
10Kwh Solar Powered Battery Lifepo4 48v 200ah Charged By Solar Panels
Basic specification of 10Kwh Solar Powered Battery
| NO. | Item | General Parameter | Remark |
| 1 | Combination method | 15S4P | |
| 2 | Typical Capacity | 200Ah |
Standard discharge after Standard charge
|
| 3 | Factory Voltage | 49V-51.0V(40-60%) | Mean Operation Voltage |
| 4 |
Voltage at end of
Discharge
|
40-44V
|
Discharge Cut-off Voltage |
| 5 | Charging Voltage | 53-55V | |
| 6 | Internal Impedance | ≤60mΩ |
Internal resistance measured at AC 1KHZ
after 50% charge
The measure must uses the new batteries
that within one week after shipment and
cycles less than 5 times
|
| 7 | Standard charge |
Constant Current 40A
Constant Voltage see No.5
0.02CA cut-off
|
Charge time : Approx 6 h Limiting current 20A |
| 8 | Standard discharge |
Constant current:40A
|
end voltage see NO.4 |
| 9 |
Maximum Continuous
Charge Current
|
100A
|
≥10ºC |
| 10 |
Maximum Continuous
Discharge Current
|
100A
|
≥10ºC |
| 11 |
Operation Temperature
Range
|
Charge: 0~45℃ Discharge: -20~55℃ |
60±25%R.H.
Bare Cell
|
| 12 |
Storage Temperature
Range
|
Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃ |
at the shipment state |
| 13 | Dimensions |
680*485*180 (220)mm
Include Bracket
|
|
| 14 | Weight | 103KG |
The BMS function introduction of 10Kwh Solar Powered Battery

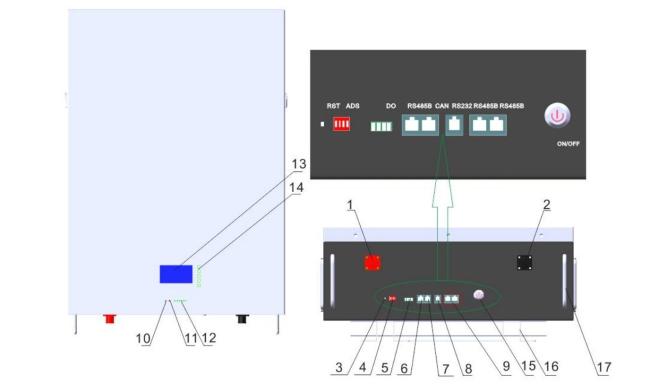

Case Stracture of 10Kwh Solar Powered Battery

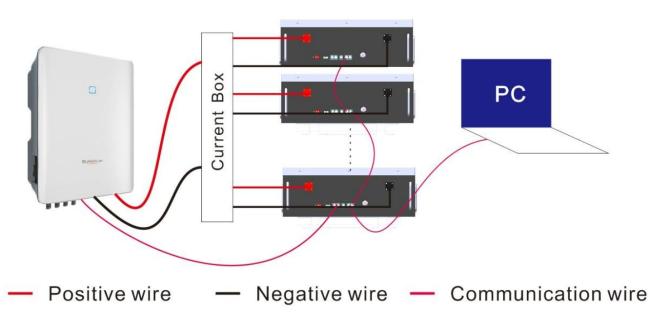

The connection image of RS485 Parallel Communication

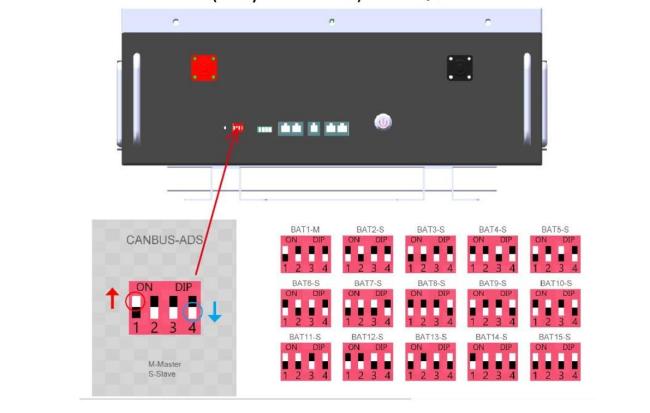

Address Switch function ( only in Parallel)

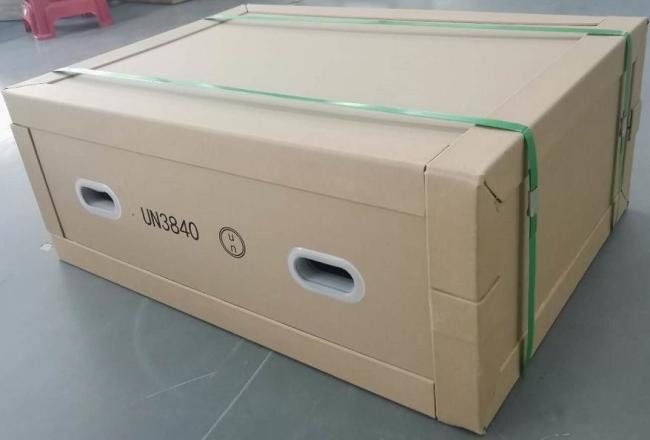

The Package of 10Kwh Solar Powered Battery

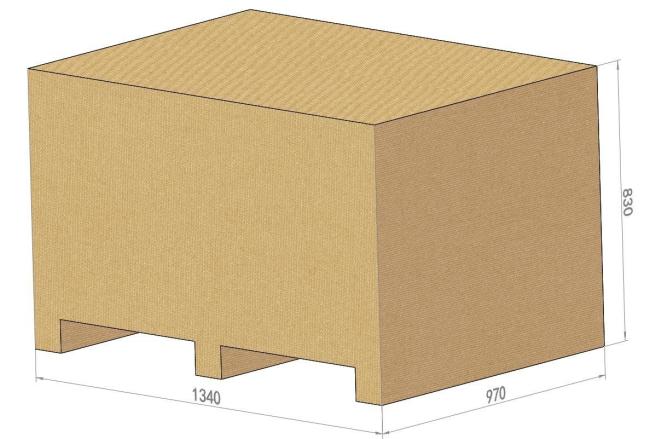

The Wooden package of 4 sets of Powerwall 48V 200Ah 9.6Kwh

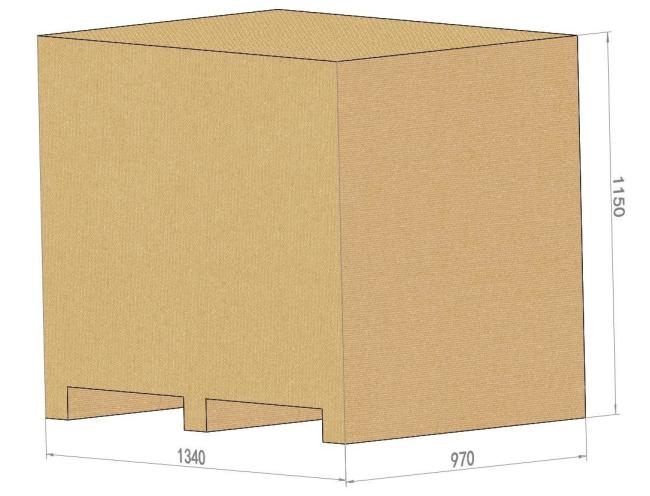

The Wooden package of 6 sets of Powerwall 48V 200Ah 9.6Kwh
FAQ
Q1: Before order, can I have samples for testing?
A: Yes, we can provide you samples for testing firstly.
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to proceed an order?
A: 1. Contact our service & let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
Q4: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months)
and the storage condition shall be:<35°C , 65±20%RH
Q5: What is MOQ?
A: Low MOQ, 1pc for sample checking is available.
