BMS IP65 Waterproof Li Ion Battery 36v 100ah 200ah For Trolling Motor

Price Negotiable
Price: Negotiable
MOQ: 10 packs
Delivery Time: 10 days
Brand: Amazing Energy
Product Description

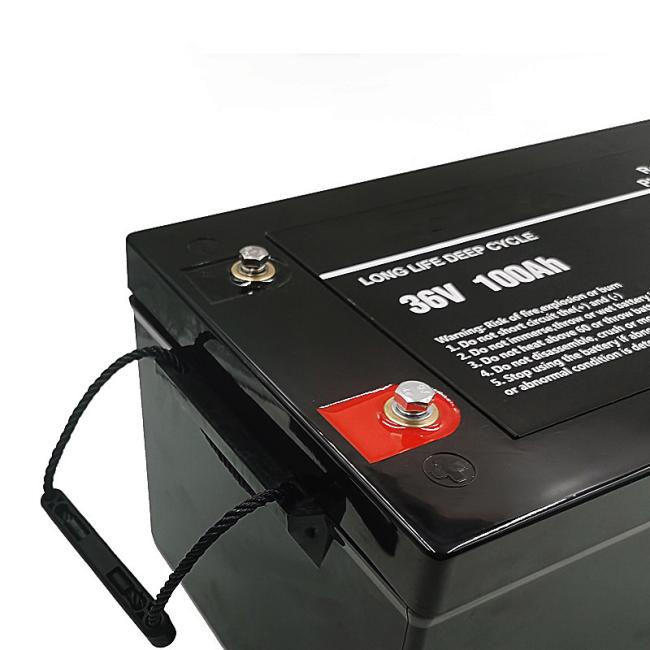

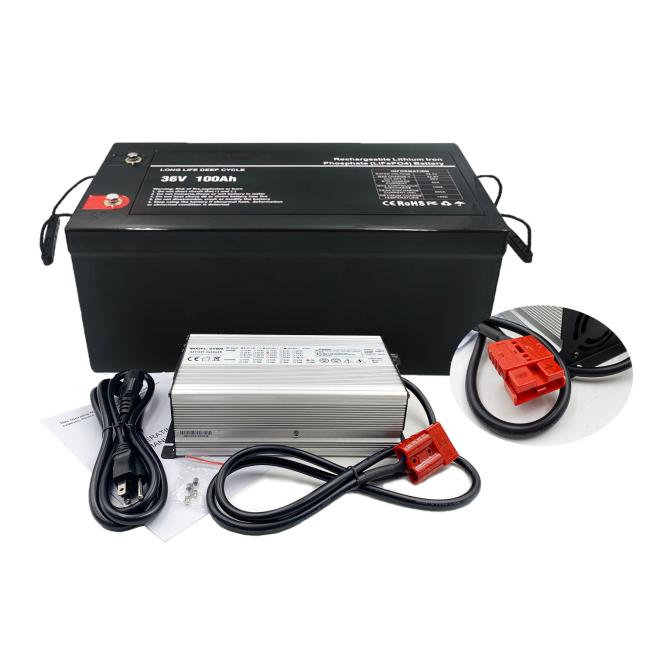

High Quality IP65 Waterproof Li Ion Battery 36v 100ah 200ah For Trolling Motor



Amazing Energy Limited provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.







Normal parameters
NO
Item
General Parameter
Remark
1
Model
IFR 3.2V 100AH
Single
2
Casing material for single cell
Nickel plated steel

3
Standard capacity(0.2C5A)
100Ah

4
Rated voltage
38.4V
38.4V(Work voltage:38.4V)
5
Max.Charge voltage
43.2V
3.6V(Single Ave. charge Voltage)
6
Cut-off voltage
30V
2.50V(Single Ave. Discharge Voltage)
8
Standard charge current
30A
0.3C
9
charging Time
About 3.5h

10
Max Continuous discharge current
100A
1.0C
11
Peak discharge current
200A
2.0C (10s) seconds
12

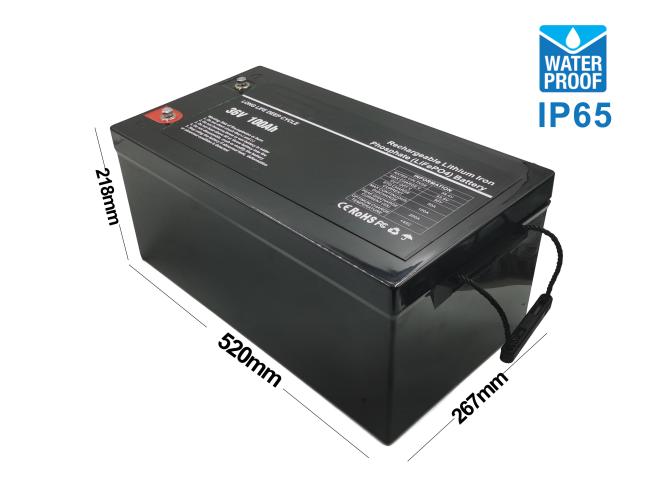

Battery dimension
520 * 267 * 218 mm

13
(Approx.)Total weight(Approx.)
About 35kg

14
(Max, at 1000Hz.)Impedance(Max, at 1000Hz.)
≤ 20mΩ

15
(CC/CV)

Charge method (CC/CV)

Standard
0℃~45℃
discharge
-20℃~45℃
storage
-20℃~45℃









Main Features
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.Up to 7-8 years lifespan.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free.

5. Can connect in parallel and series.
6. IP65 waterproof ratings.Suitable for marine use.
7.Safer performance. Our batteries have passed different safety tests.



Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection



Application
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup, and other deep cycle applications etc.
