CATL LiFePo4 320Ah 3.2v battery Lithium Iron Phosphate Prismatic Cells 6000 Cycles
CATL LiFePo4 320Ah 3.2v Lithium Iron Phosphate Prismatic Cells 6000 Cycles
The specification of CATL LiFePo4 320Ah 3.2v Battery
| NO. | Items | Parameter | Remarks | |
| 1 | Nominal Capacity | 320Ah | Standard Discharge | |
| 2 | Minimal Capacity | 320Ah | Standard Discharge | |
| 3 | Work Voltage | 2.5~3.65V | ||
| 4 | Internal Resistance(Ac. 1kHz) | 0.1~0.5mΩ | Fresh Cell,30%SOC | |
| 5 | Charging Time | Standard Charge | ~4h | Reference Value |
| Fast Charge | ~1h | |||
| 6 | Recommended SOC Window | SOC :10%~90% | ||
| 7 | Operating Temperature | Charging Temperature | 0~45°C | Refer to section 4.2 |
| Discharging Temperature | -20~55°C | Refer to section 4.4 | ||
| 8 | Weight | 5.3kg | ||
FAQ of CATL LiFePo4 320Ah 3.2v Battery:
(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
(5). What kind of guarantee you give?
Our battery the warranty time is 1 year for cells

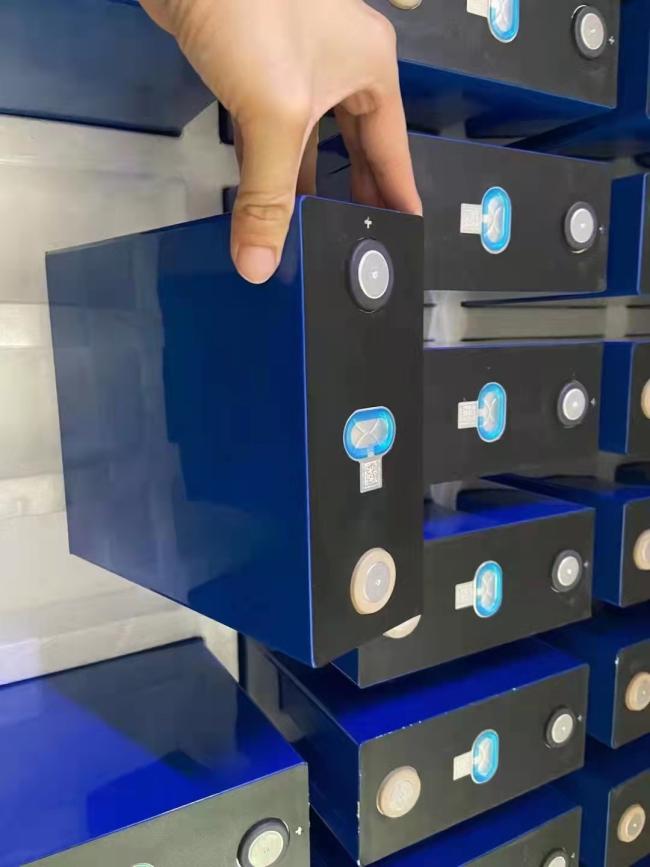

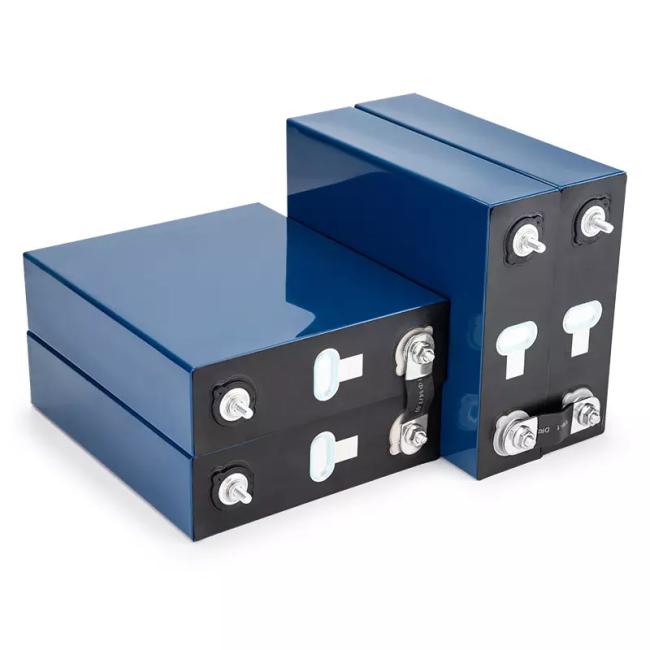

The detail picture of CATL LiFePo4 320Ah 3.2v Battery
The shipment of CATL LiFePo4 320Ah 3.2v Battery
Can ship via DHL, FEDEX, UPS the fastest way
Can ship via Sea to door via sea to port, the cost effective way
