220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder
Price:
As discuss
MOQ:
One set
Delivery Time:
25-30 work days
Brand:
Gracias
Product Description

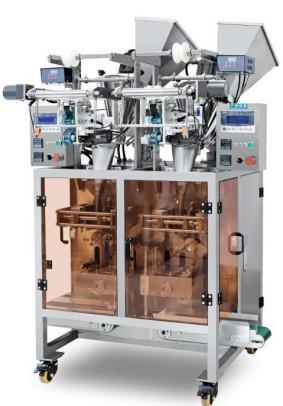

YH-K488/Y488/F488 Liquid/Powder/Granular Packaging Machine
Applications
- lt is suitable for automatic packaging of granules, liquid pastes and powder products in cosmetics.food, health care and pharmaceutical industries. The two machines are packaged in parallel, which is suitable for customers with small sites, large production capacity and little investment in the early stage.
Features
1.Two-machine parallel design, large capacity.
2.Customized side seals, back seals,one out two or one out four series according to customer requirements.
3.Material: The contact part of the box and material ismade of sUS304 stainless steel, which is in line with GMP production.
4.The heat-generating parts and moving parts arehidden in the protective cover, which is safe andreliable.
5.The equipment is equipped with casters for easyhandling and movement.
Parameter:
| Model number | YH-K488 | YH-Y488 | YH-F488 |
| Filling range | 1-50ml | 1-50ml | 1-50ml |
| Rows | 1by2,1by4 | 1by2,1by4 | 1by2,1by4 |
| Sachet size | W:30-100mm L:30-170mm | W:30-100mm L:30-170mm | W:30-100mm L:30-170mm |
| Max.film width | 220mm | 220mm | 220mm |
| Sachet type | 3 sides/4 sides/stick | ||
| Filling method | volumetric cups | Piston pump,magnetic pump | Auger screw |
| Capacity | 40-160bags/min PPM | 40-150bags/min PPM | 40-150bags/min PPM |
| Power voltage and consumption | 220V50-60HZ/3KW | 220V50-60HZ/3KW | 220V50-60HZ/3KW |
| Air | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa | 0.3m³/min 0.6-0.8Mpa |
| Dimension(L*W*H) | 1240*763*1655mm | 1240*763*1655mm | 1240*763*1655mm |
| Weight | 450KG | 450KG | 450KG |
