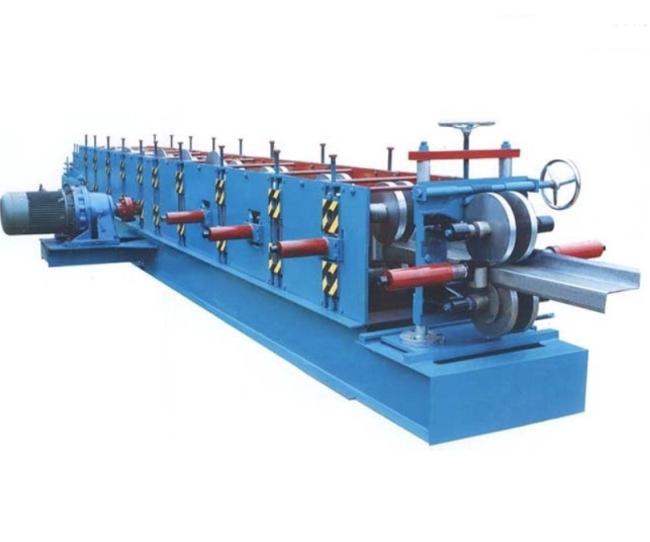

Blue Z Purlin Roll Forming Machine 10m/min For Color Steel

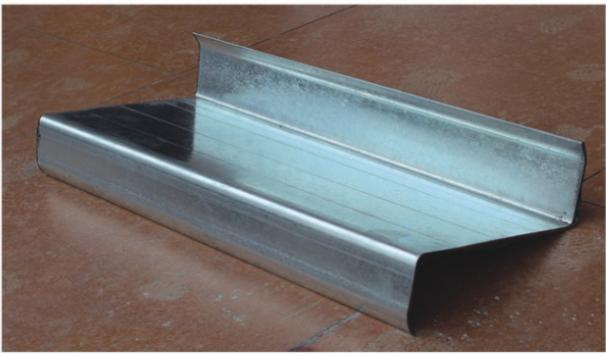

Final products display:

Z purlin dimensions table

Technical parameters:

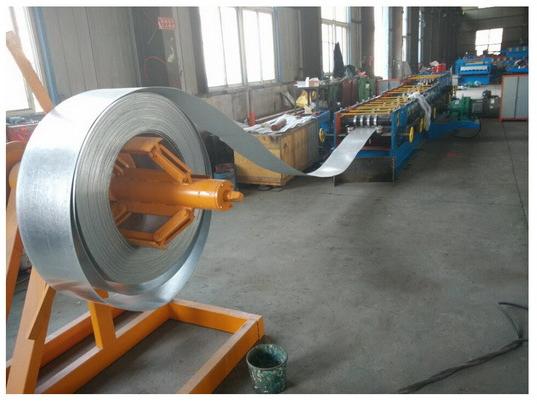

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

You may choose manual or full automactic.

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Note for use and maintenance

1) before use,you must check whether all connections are steady,whether bolts and

nuts are tightinstallation.when start the machine,you must make sure there are enough

lubrication oil in the case.

2) when start the machine commissioning,the machine should run idle,then check it

carefully such as noise,vibration and whether the oil window works smoothly,whether

every parts movement coordination.

3) You must cut off power when install the mould,move the motor belt and big gear by

hand,turn the workbench and make sure the slide up to the highest point.

4) It's better to arrange a support between workbench and slide bottom,just in case

dropping and accident happens.
