840 Roofing Sheet Roll Forming Machine , Blue Corrugated Roof Sheet Making Machine
Price:
Negotiable
MOQ:
1set
Delivery Time:
25 work days
Brand:
Gracias
Product Description

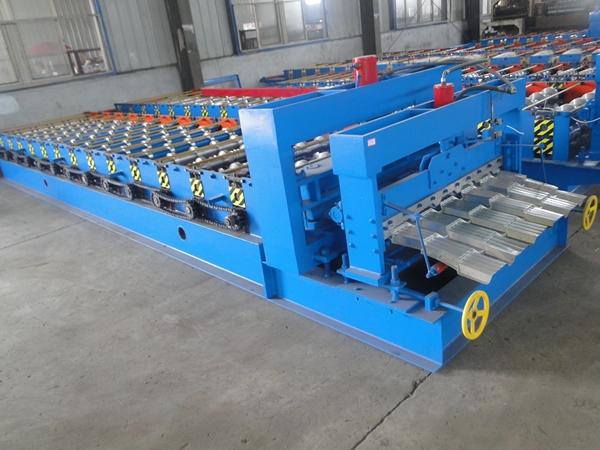

840 roof tile zinc making galvanized corrugated roofing sheet making machine
Features
• Easy operate
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning
• Left or right side mounting
1. Technical parameters :
| 1. | Name | 840 trapezoid glazed tile roof sheet made in china |
| 2. | Raw Materil | Galvanizd steel |
| 3. | Thickness | 0.3-1mm or as request |
| 4. | Roller Station | 9-15 Steps |
| 5. | Shaft Material | 45#Steel |
| 6. | Roller Material | 45#steel heat treated |
| 7. | Transport | Chain or gear |
| 8. | Forming Speed | 6m/min |
| 9. | Motor Power | 5kw |
| 10. | Voltage | 380V 50HZ 3Phase |
| 11. | Cutting System | Hydraulic Cutting |
| 12. | Control System | Detal PLC, |
| 13. | The whole line :Manual decolier, roll forming machine, hydraulic station, PLC control system, Hydraulic cutter, run-out-table | |
2. Details show :

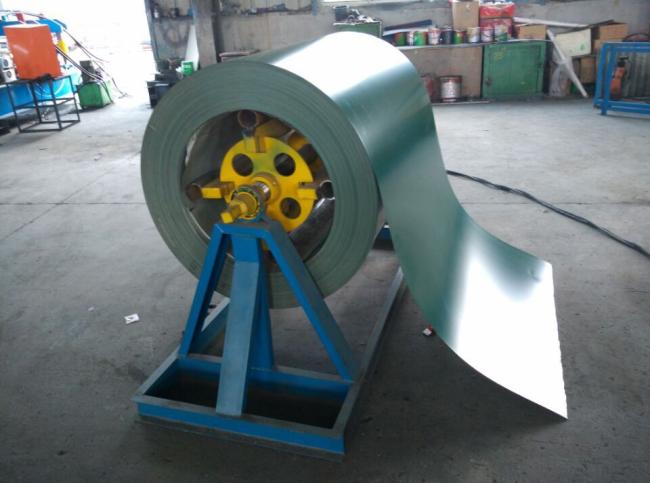

a. Feeding and decoiling

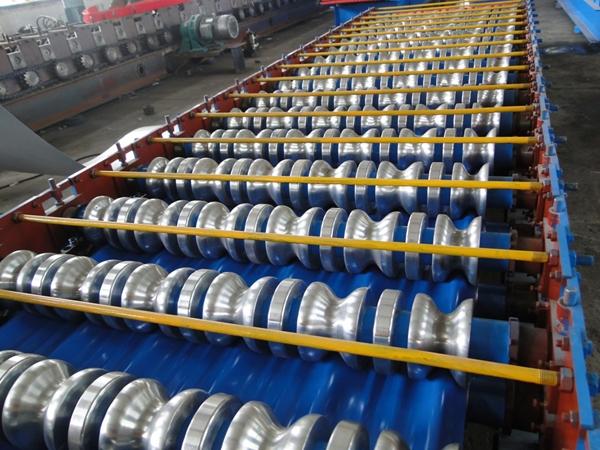

b. Forming
