Metal Ceiling Roll Forming Machine , 60 Drywall Roll Forming Machine
Price:
As discussion
MOQ:
1set
Delivery Time:
20-35work days
Brand:
Gracias
Product Description

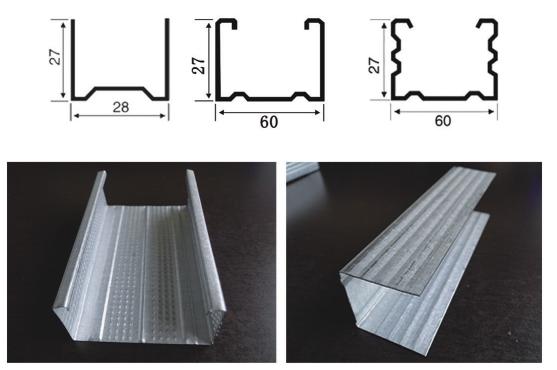

Metal Ceiling Roll Forming Machine 60 Drywall Roll Forming Machine
Product Description
| NO. | Item | Parameter |
| 1 | material | color steel/galvanized steel/aluminium(if G550 please check with us) |
| 2 | feeding width | 80mm,114mm or as customers' request |
| 3 | material thinkness | 0.3-0.6mm or as customers' request |
| 4 | machine size | 4.5*1.2*1.5 |
| 5 | machine weight | 2.5T |
| 6 | voltage requirement | 380V60Hz3P |
| 7 | working speed | 10-25m/min |
| 8 | Frame | Cast steel plate screwed |
| 9 | forming steps | 10steps |
| 10 | rollers | GCr12MoV |
| 11 | shaft | 45#steel,diameter 40mm |
| 12 | PLC | Delta |
| 13 | motor | 4kw |
| 14 | pump | 4kw |
| 15 | cutter | Cr12 HRC 58-62℃ |
| 16 | after-sale service | 24h*7days*1year’s on line and engineer service overseas |
| 17 | warranty |
1year |
| Accessory of C&U double layers tile roll forming machine | |

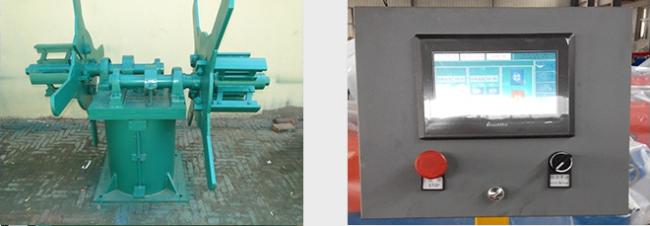

| 1 | Manual decoiler |
| 2 | Main roll forming machine |

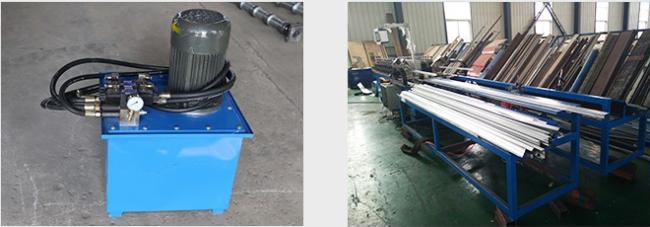

| 3 | Hydraulic pump |
| 4 | PLC control system |
| 5 | Cutting device |
| 6 | Manual table |
decoiling-guide feeding-main roll forming-cutting-finished products
