Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler
Price:
As discussion
MOQ:
1set
Delivery Time:
30-50 work days
Brand:
Gracias
Product Description
Hydraulic CZ Purlin Roll Forming Machine 5T Double Heads Decoiler
| NO. | ITEM | PARAMETER | |
| 1 | Material | type | GI,PPGI |
| Width | 190-420mm | ||
| thickness | 0.5-3mm | ||
| Yield stress | 350-550Mpa | ||
| 2 | Product | Cover width | 80-300mm |
| Wave height | 80-300mm | ||
| Pitch width | 40-80mm | ||
| 3 | Decolier | Type | Automatic with coil car |
| Suitable coil OD/ID | 1200/250-508mm | ||
| Max coil width | 1000mm | ||
| Max capacity | 5T | ||
| 4 | Levelling parts | roller | Diameter:95mm |
| No.45 steel with quenching | |||
| Forming stand | 18 | ||
| 5 | Punching parts | Type | Hydraulic punching |
| Model material | GCr12 | ||
| 6 | Main machine | Roller | 90mm |
| GCr15 chrome plated | |||
| Main machine structure | Guide column or wallboard | ||
| 7 | Power requirement | Main motor | 11.5kw |
| Hydraulic pump | 5kw | ||

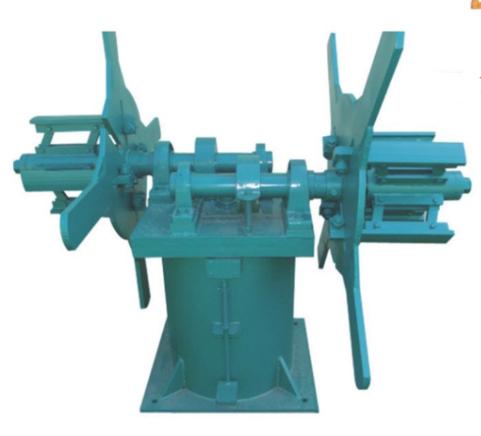

Double Heads Decoiler
