C140 Keel Roll Forming Machine 3.5T Light Steel Villa Construction
C140 Keel Roll Forming Machine Light Steel Villa Construction

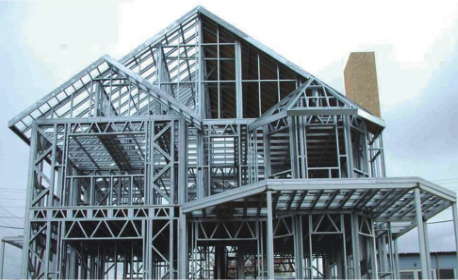

The light steel villa skeleton is assembled from the c89/140 keel,which is formed by high-strength G550/Z275 hot-dip galvanizing with roll forming,increasing the service life of light steel house. The c89/140 keel has already processed the pre-install holes and is easy to be installed.
It is an example of environmentally-friendly housing. Design software Vertex systems;Automatic 3-dimensional model;Application and calculation of bearing force; automatic generation of 3D component structure diagram and 3D decoration impression drawing; Auto-disassembling drawing,automatic generation of maaterial list;automatic conversion of processing data;highly integrated software and equipment highly integrated provide effective technical support and guarantee to customers.
Material: Galvanized steel or Stainless steel
Feeding width:Based on customer’s request
Material thickness:0.8-1.5mm
Yield strength:235-450mpa

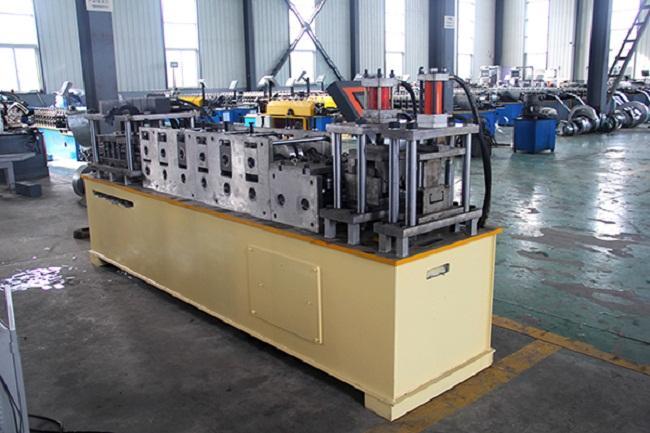

Machine components
| Part 1 | 3T manual decoiler |
| Part 2 | Punching device, five groups |
| Part 3 | Main forming machine |
| Part 4 | Hydraulic pump |
| Part 5 | Plc control system |
| Part 6 | Hydraulic cutting device |
| Part 7 | Manual holder |

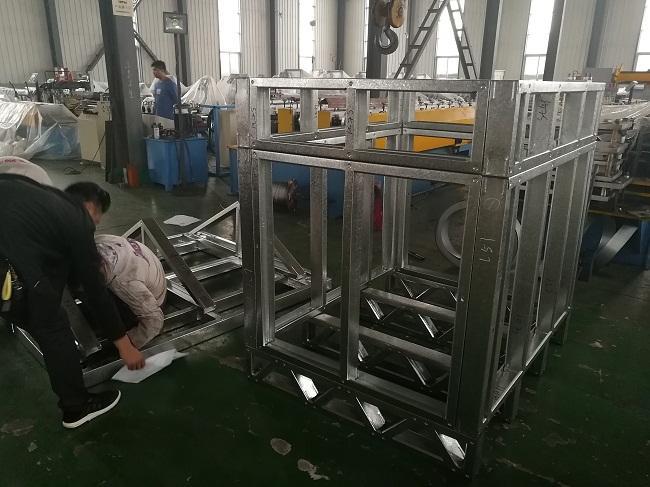

Final product
