4.5T Storage Rack Roll Forming Machine 5.5KW For Aluminium Plate
Price:
Negotiable
MOQ:
one set
Delivery Time:
30 work days
Brand:
Gracias
Product Description
4.5T Storage Rack Roll Forming Machine For Aluminium Plate
Decoiler ---Punching ---Forming --Cutting
| Name | Supermarket shelf roll forming machine |
| Processing material | galvanized sheet, or aluminium plate |
| Material thickness | 0.8-1.5 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |

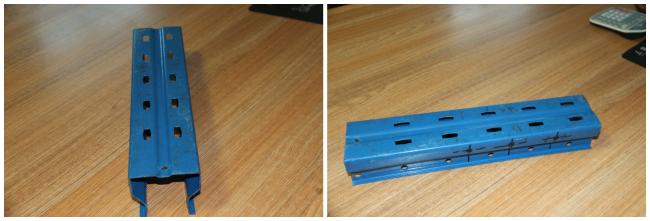

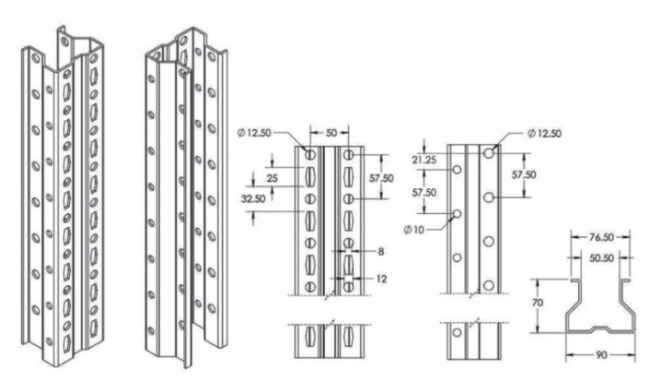

Profile
