15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
15m/min CZ Purlin Roll Forming Machine 6.5T 15 Roller Station
1. The chart of process flow:
Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand
2. Main equipment:
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3. Technical parameters

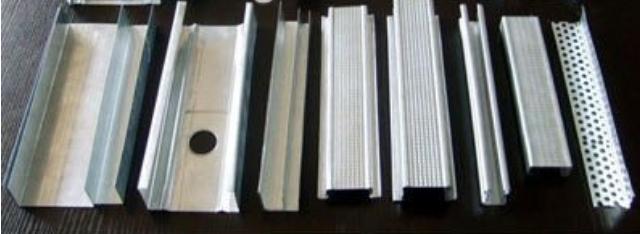

1) Profile
2) inner tight decoiler
| Coil inner diameter | 450mm--700mm |
| Max width of coiling | 1250mm |
| Max weight of loading | 5000kg |
3) main forming machine
| Shaft material | 45# steel,bearing steel outer diameter 85mm |
| Main motor power | 5.5kw |
| Forming speed | 8--15m/min |
| Voltage | 380v,50hz |
| Roller station | 15 |
4) cutting system
A. hydraulic cutter
B. Blade and mould material:Cr12 steel with quenched treated 60-62°
C. Cutting system advanced hydraulic drive,after automatic cutting after forming
5) control system
A. PLC: taida form Taiwan
B. Coder:from south korea
6) hydraulic system
A. advanced hydraulic system from taiwan
B. Power:3kw
