6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile
Price:
Negotiable
MOQ:
1set
Delivery Time:
50 work days
Brand:
Gracias
Product Description

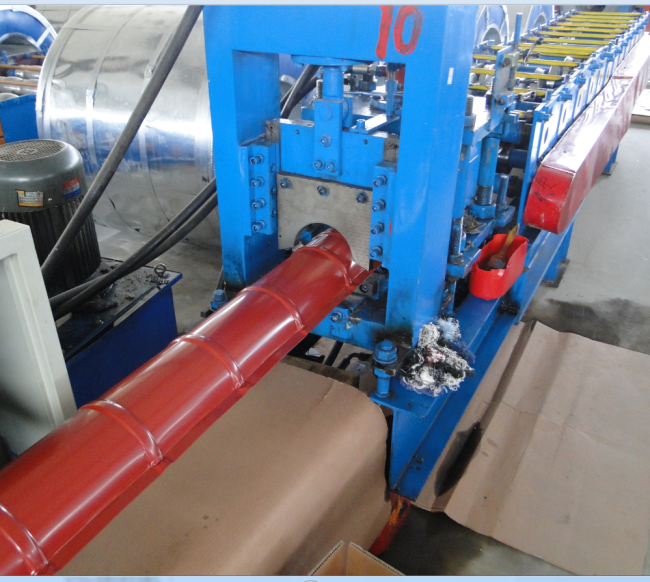

6T Roofing Sheet Roll Forming Machine 3KW Colored Steel Tile
Introduction of Equipment
| No | Name | Unit | Qty |
| 1 | Manual uncoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Simple output fram | set | 1 |
Technical Specifications
1) manual inner tight decoiler
a. coil inner diameter: 450mm-550mm
b. maximum width of coiling: 1200mm
c. maximum weight of loading: 6000kg
2) main forming machine
a. number of forming steps: 9
b. material of shaft: 45# steel adjustable treatment. outer diameter: 70mm
c. material of roller: high grade 45# steel (plated chrome on surface)
d. main motor power : 3kw
e. forming speed: 8-10m/min
f. stand: 350# steel welding
g. the plating chromium of roller surface: 0.05mm
