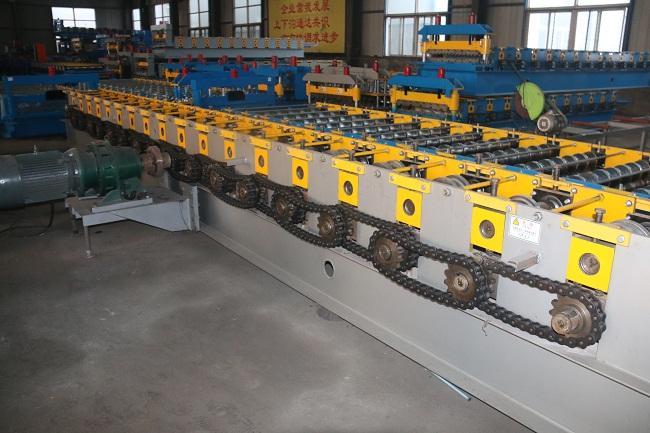

Cold Steel Cable Tray Roll Forming Machine 15m/min 6T
Cold Steel Cable Tray Roll Forming Machine 15m/min 6T
|
Items |
Specifications |
|
|
Material of coil |
Material Width |
200-950mm |
|
Material Thickness |
0.8-2.0mm |
|
|
Uncoiler |
6 tons manual |
|
|
Forming system |
Rolling Speed |
12-15m/min |
|
Roller Stations |
24 stations |
|
|
Roller Material |
GCr15 quench treatment |
|
|
Shaft DIA |
D65mm |
|
|
Main Motor Power |
22kw |
|
|
Cutting system |
Material Of Cutting |
Cr15 with quench treatment |
|
Hydraulic cutting Power |
5kw |
|
|
Control System |
PLC (Panasonic) |
Hydraulic cutting
Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)
Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: 508mm;inner expansion range: 480-520 mm;
The maximal of Diameter: 1500mm; The Maximal of loading: ≤6T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 12-15m/min, adjustable
