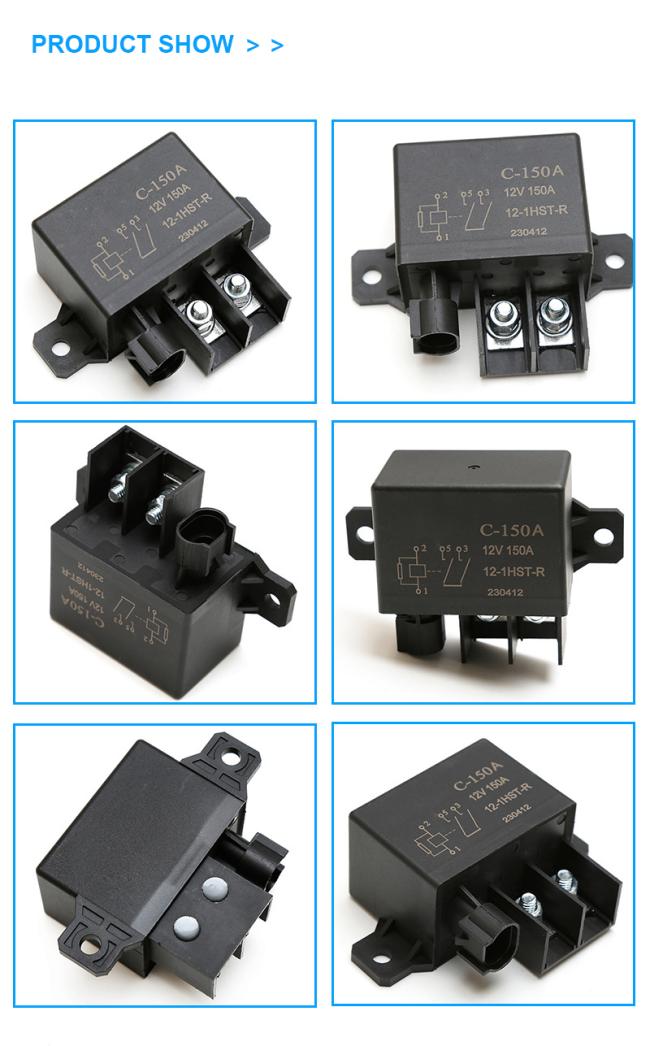

150A Heavy Duty Truck Automotive Relays 24V Car Start Relay For Vehicle Preheating
150A Heavy Duty Truck Automotive Relays 24V Car Start Relay For Vehicle Preheating
150A Contact Switching Capacity
125℃ Work Temperature
Normal Open Double Contact Form
Diode or Resistance Optional

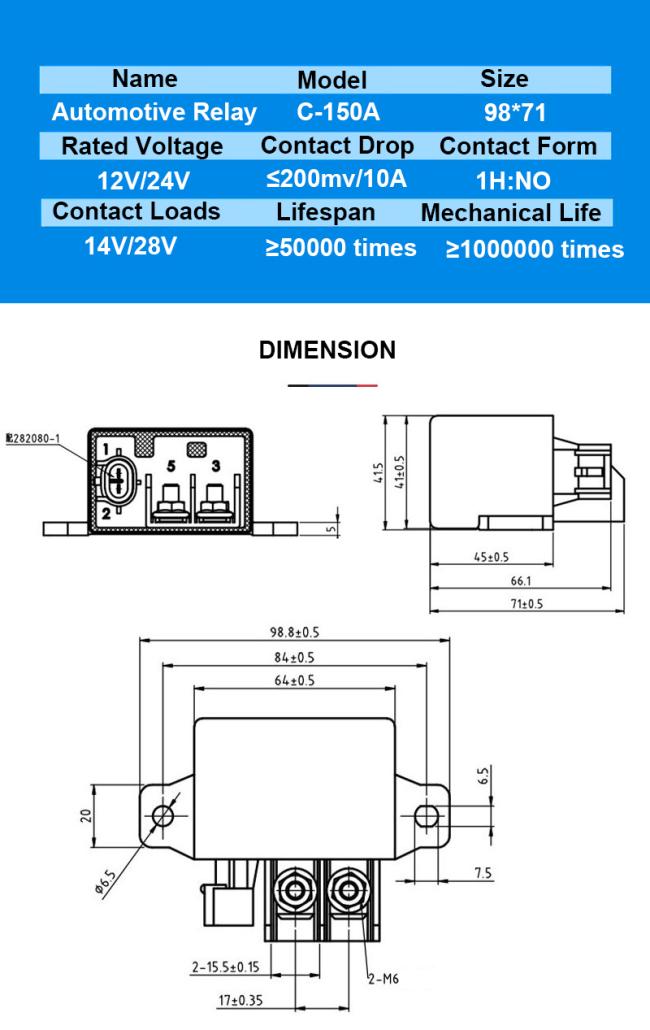

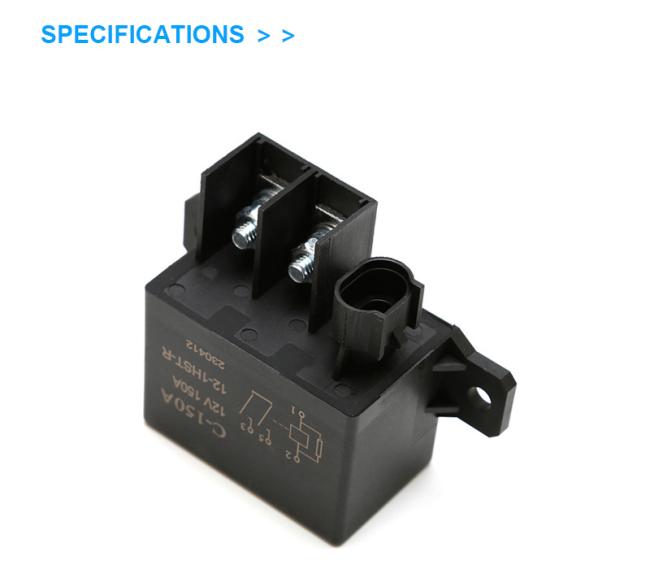

Specification of 150A Heavy Duty Truck Automotive Relays 24V Car Start Relay
| Contact |
Contact Form | 1H (SPST-NO) | ||||||||
| Contact Material | AgSnO2 | |||||||||
| Contact Load |
180A/14VDC | |||||||||
| 150A/28VDC | ||||||||||
| Contact Voltage Drop |
Normal Rate:200mV (Tested under 10A 13.5V) |
|||||||||
| Rating |
Max. Continuous Current |
NO Contact:180A(23℃) | ||||||||
| Max. Switching Volt |
28VDC ( | |||||||||
| Min. Load | 1A 6VDC | |||||||||
| Electrical Char. |
Insulation Resistance | 10MΩ (500VDC) | ||||||||
| Breakdown Volt. | Between Contacts:1000VAC | |||||||||
| Between Coil and Contact:1000VAC | ||||||||||
| Expected Life |
Electrical Life | 5*104 Cycles | ||||||||
| Mechanical Life | 1*107 Cycles under 300cpm | |||||||||
Coil Ratings of 150A Heavy Duty Truck Automotive Relays 24V Car Start Relay
| Nominal Volt. (VDC) |
Pick-up Volt. (VDC) |
Release Volt. (VDC) |
Coil Res. X(1±10%) Ω |
Power Dissipation (W) |
Max. Voltage (VDC) |
|||||
| 12 | ≤8 | ≥1.2 | 30 | 4.8 | 15 | |||||
| 24 | ≤15.6 | ≥2.4 | 120 | 4.8 | 30 | |||||
Features of 150A Heavy Duty Truck Automotive Relays 24V Car Start Relay
▪ 150A large current
▪ Designed for automotive
Application of 150A Heavy Duty Truck Automotive Relays 24V Car Start Relay
Car Start, Preheat, How Wind,
Electric Car Control
Details of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays
