1st Carrier Assy 191 2678 Gear Planet E324D Gear Reduction Parts
1st Carrier Assy 191 2678 Gear Planet E324D Gear Reduction Parts
Gear Reduction Parts E324D 1st Carrier Assy 191-2678 1912678
|
Description |
Gear Reduction Parts, E324D Gear Parts, E324D 1st Carrier Assy |
|
Application |
E324D Gear Reduction |
|
Model |
E324D |
|
Part No. |
191-2678 1912678 |
|
Quality |
OEM quality |
|
Type |
Made in china, aftermarket |
|
Packing |
Light items pack with carton box, heavy items pack into wooden |
|
MOQ |
1PC |
|
Lead time |
About 1-3 working days |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
3 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |
More pictures showing:

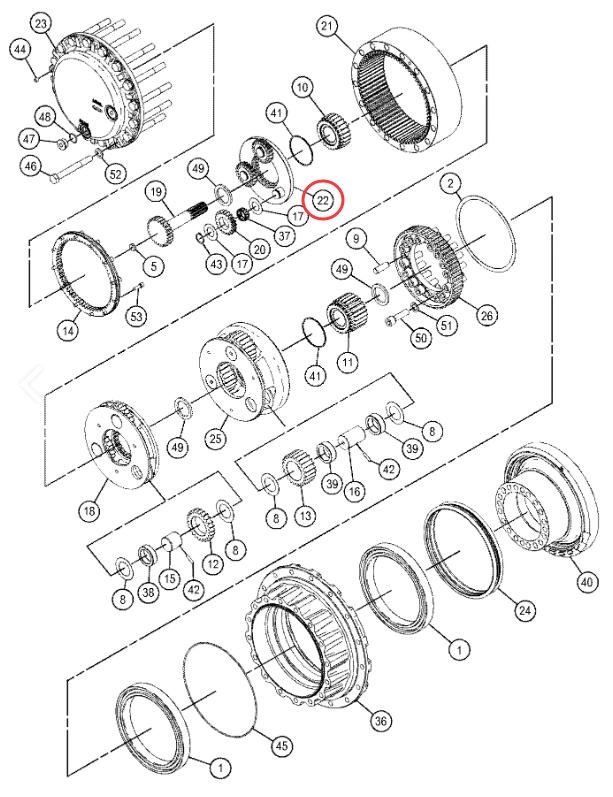

More Gear Parts Available:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 333-2914 | [2] | BALL BEARING | |
| 2. | 7Y-0752 B | [1] | SHIM (0.8-MM THK) | |
| 7Y-0753 B | [1] | SHIM (1-MM THK) | ||
| 7Y-0754 B | [1] | SHIM (1.6-MM THK) | ||
| 267-6863 B | [1] | SHIM (0.75-MM THK) | ||
| 267-6864 B | [1] | SHIM (0.85-MM THK) | ||
| 267-6865 B | [1] | SHIM (0.9-MM THK) | ||
| 267-6866 B | [1] | SHIM (0.95-MM THK) | ||
| 267-6867 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6868 B | [1] | SHIM (1.4-MM THK) | ||
| 267-6869 B | [1] | SHIM (1.8-MM THK) | ||
| 267-6870 B | [1] | SHIM (2-MM THK) | ||
| 267-6871 B | [1] | SHIM (2.3-MM THK) | ||
| 5. | 094-0578 B | [1] | PLATE (8-MM THK) | |
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8. | 094-1528 | [12] | WASHER (53X84X1-MM THK) | |
| 9. | 114-1540 | [4] | PIN-DOWEL | |
| 10. | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 11. | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 12. | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 13. | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 14. | 169-5594 | [1] | GEAR-RING (65-TEETH) | |
| 15. | 169-5601 | [3] | SHAFT-PLANETARY | |
| 16. | 169-5602 | [3] | SHAFT-PLANETARY | |
| 17. | 171-9297 | [6] | WASHER (34.3X62X1-MM THK) | |
| 18. | 191-2571 | [1] | CARRIER-PLANETARY | |
| 19. | 191-2674 | [1] | GEAR-SUN (25-TEETH) | |
| 20. | 191-2675 | [3] | GEAR-PLANETARY (20-TEETH) | |
| 21. | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 22. | 191-2678 | [1] | CARRIER AS | |
| 23. | 199-4503 | [1] | COVER | |
| 24. | 207-1571 | [1] | SEAL GP-DUO-CONE | |
| 214-3570 | [2] | RING-TORIC | ||
| 25. | 267-6799 | [1] | CARRIER-PLANETARY | |
| 26. | 267-6800 | [1] | GEAR-COUPLING | |
| 36. | 267-6879 | [1] | HOUSING (SPROCKET) | |
| 37. | 333-2915 | [3] | BEARING AS | |
| 38. | 333-2916 | [3] | BEARING AS | |
| 39. | 333-2917 | [6] | BEARING AS | |
| 40. | 452-3517 | [1] | HOUSING-MOTOR | |
| 41. | 093-1731 | [2] | RING-RETAINING | |
| 42. | 095-0891 | [6] | PIN-SPRING | |
| 43. | 096-0433 | [3] | RING-RETAINING | |
| 44. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 45. | 171-9298 | [1] | SEAL-O-RING | |
| 46. | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 47. | 3E-2338 | [2] | PLUG-PIPE | |
| 48. | 7M-8485 | [2] | SEAL-O-RING | |
| 49. | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 50. | 7Y-5217 M | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 51. | 8T-3282 | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 52. | 451-2176 | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53. | 101-7404 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) |
Payment &Packing &Shipping:
A). TT transfer, Western Union, Paypal, Moneygram are acceptable.
B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden with standard packing.If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.
D). DHL /Fedex /UPS /TNT/ARMEX/SF Express ,etc. normal express shipping way for small cargo.Russia,Kazakhstan, Ukraine Russia Special Line,
Bangladesh,Myanmar,Vietnam ect, competitive shipping way no need you do customs clearance.Door to Door.
Warranty Statement:
1. Warranty Type: We will replace the product which have quality problem.
2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.
Contact with us and offer the data, photos of the problem items
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
