2050691 Travel Device 1st Carrier Assy Hitachi ZX200 3 Hydraulic Gear Parts

Price Negotiable
Price: Negotiable
MOQ: 1set
Delivery Time: 1-3 working days
Brand: PNC
Product Description

2050691 Travel Device 1st Carrier Assy Hitachi ZX200 3 Hydraulic Gear Parts



Hitachi ZX200-3 Travel Device 1st Carrier Assy 2050691 Hydraulic Gear Parts



Description

ZX200-3 1st Carrier Assy, ZX200-3 Travel Device Carrier Assy, Hydraulic Gear Parts

Application

ZX200-3 Travel Device

Model

ZX200-3

Part No.

2050691

Quality

OEM quality

Type

Made in china, aftermarket

Packing

Light items pack with carton box, heavy items pack into wooden

MOQ

1PC

Lead time

About 1-3 working days

Payment

TT, Western union, Paypal, Paysend, RMB

Warranty

3 Months

Shipping Port

Huangpu Old Port, Shenzhen Yantian,Guangzhou



More pictures showing:





More Gear Parts Available:

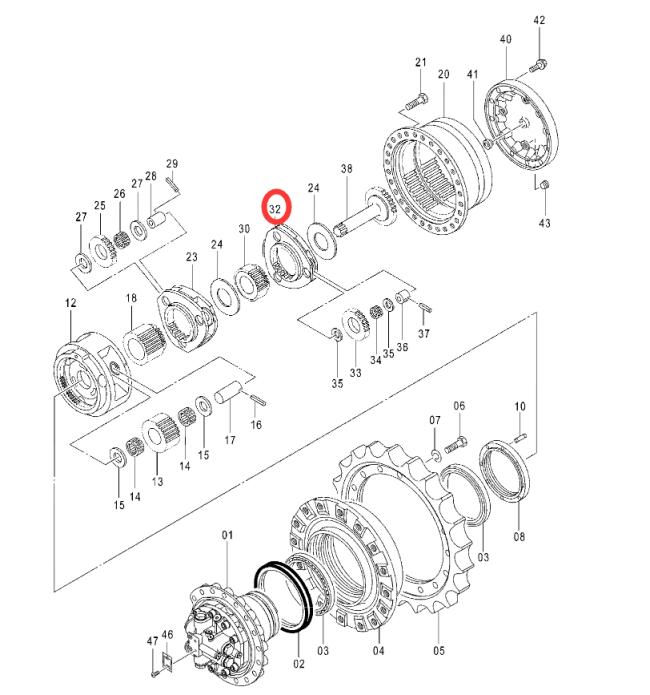

Pos. Part No Qty Parts name Comments
  9233692 [1] TRAVEL DEVICE I 9261222 <for assembly of machine>
  9261222 [1] TRAVEL DEVICE <for transportation>
01. 9257254 [1] MOTOR;OIL I 9258325 <for assembly of machine>
01. 9258325 [1] MOTOR;OIL <for transportation>
02. 4634693 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1033090 [1] DRUM
05. 1033091 [1] SPROCKET
06. J932055 [18] BOLT
07. A590920 [18] WASHER;SPRING
08. 3086531 [1] NUT
10. 4436242 [1] PIN;KNOCK
12. 1025875 [1] CARRIER
13. 3084353 [3] GEAR;PLANETARY
14. 4438593 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4116309 [3] PIN;SPRING
17. 4315838 [3] PIN
18. 3082156 [1] GEAR;SUN
20. 1025787 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2042432 [1] CARRIER
24. 4401293 [2] SPACER
25. 3082155 [3] GEAR;PLANETARY
26. 4438592 [3] BRG.;NEEDLE
27. 4192982 [6] PLATE;THRUST
28. 4402086 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3082149 [1] GEAR;SUN
32. 2050691 [1] CARRIER
33. 3100544 [3] GEAR;PLANETARY
34. 4406589 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2050692 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4478346 [1] PIN;STOPPER
42. 4699148 [12] BOLT;SEMS
43. 4245797 [3] PLUG
46. +++++++ [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE




Payment &Packing &Shipping:




A). TT transfer, Western Union, Paypal, Moneygram are acceptable.



B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden with standard packing.If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.



C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.



D). DHL /Fedex /UPS /TNT/ARMEX/SF Express ,etc. normal express shipping way for small cargo.Russia,Kazakhstan, Ukraine Russia Special Line, Bangladesh,Myanmar,Vietnam ect, competitive shipping way no need you do customs clearance.Door to Door.





Warranty Statement:



1. Warranty Type: We will replace the product which have quality problem.



2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival. Contact with us and offer the data, photos of the problem items



3. You need to pay for the replacement charge for following condition:

* Wrong Order from customer.

* Natural Disasters cause the damage.

* Error installation, improper use.

* The machine and reducer work over time and over load.

* Lost by any condition.

* Human element destroyed.

* Corrode with rust during stock and running.

* Warranty Expired.


FAQ :



Q1: How can i make payment ?

A : Bank transfer, Western union, Paypal, Paysend, or RMB.
bank transfer take 2-3days, while we can arrange order once received the remittance copy.



Q2: How fast you can do shipment?

A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time, won't let you and your client down.



Q3: If we dont find what we want on your website, what should we do?

A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post all production online.



Q4. Do your product been tested before delivery?

A: Yes, all product been tested to make sure they are qualified to sell.



Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
