LC10V00001F1 K3V112DTP 9TBR Excavator Main Pump SK330LC-6E
LC10V00001F1 K3V112DTP 9TBR Main Pump Excavator SK330LC-6E Piston Hydraulic Pump
|
Description |
SK330-6E Main Pump, K3V112DTP Excavator Pump, Kobelco Hydraulic Pump |
|
Application |
Kobelco Excavator |
|
Model |
LC10V00001F1 K3V112DTP 9TBR |
|
Part No. |
LC10V00001F1, LC10V00004F4, LC10V00005F4 |
|
Quality |
China made |
|
Weight |
100-125 kgs |
|
Packing |
Pack into export wooden |
|
MOQ |
1PC |
|
Lead time |
About 1-3 working days |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
3 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Kobelco parts catalog:
(SK330LC) - DYNAMIC ACERA EXCAVATOR ASN YC06U0101 (1/01-12/02)
(08-011) - PUMP ASSEMBLY » LC10V00001F1

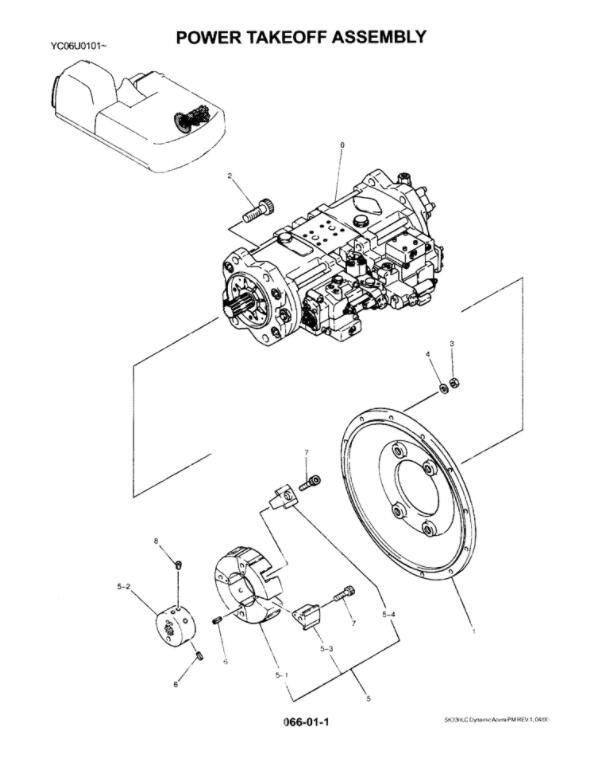

(01-014) - POWER TAKEOFF ASSEMBLY » LC10V00001F1
Tips: To ensure client buy correct parts from China, parts details like model, part no. pump code, photo or size are required.
more details more good, all these infos are aim to supply you CORRECT parts to fit well with machine.
Parts on group Kobelco SK330-6E hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 0. | LC10V00001F1 | [1] | PUMP | KOB Used From Dates 04/27/1999 - 06/16/2000, Remarks: SEE CPM Superseded by part number: LC10V00001F2 |
| 0. | LC10V00001F2R | [1] | REMAN-HYD PUMP | RAC SK330LC DYNAMIC ACERA EXCAVATOR ASN YC06U0101, Reman for New PN LC10V00001F1 |
| 0. | LC10V00001F2C | [1] | CORE-HYDRAULIC PUMP | RAC Return Number |
| 0. | LC10V00001F2 | [1] | PUMP | KOB Used From Dates 06/16/2000 - 05/25/2001 |
| 0. | LC10V00005F1 | [1] | PUMP | KOB Used From Dates 05/25/2001 - 07/15/2002 Superseded by part number: LC10V00005F2 |
| 0. | LC10V00005F2R | [1] | REMAN-HYD PUMP | KOB SK330LC DYNAMIC ACERA EXCAVATOR ASN YC06U0101, Reman for new PN LC10V00005F1 |
| 0. | LC10V00005F2C | [1] | CORE-HYDRAULIC PUMP | KOB Return Number |
| 0. | LC10V00005F2 | [1] | PUMP | KOB Used From Dates 07/15/2002 - 02/10/2003 |
| 0. | LC10V00005F3 | [1] | PUMP | KOB Used From Dates 02/10/2003 - 02/01/2004 Superseded by part number: LC10V00018F1 |
| 0. | LC10V00018F1R | [1] | REMAN-HYD PUMP | KOB SK330LC (ASN YC06U0101), Reman For New P/N LC91Z00002D4-01 |
| 0. | LC10V00018F1C | [1] | CORE-HYDRAULIC PUMP | KOB Return Number |
| 0. | LC10V00005F4 | [1] | PUMP | KOB Used From Dates 03/01/2004 - 01/16/2006 Superseded by part number: LC10V00018F1 |
| 0. | LC10V00018F1 | [1] | PUMP | KOB Used From Dates 01/16/2006 - |
| 0. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOB O-Ring -- ID 94.40 ± 0.81 x OD 100mm for Gear Pump to Pump -- Not Shown |
| 1. | LC30P01002P1 | [1] | U-BRACKET | KOB Used From Dates 03/19/1999 - 06/01/2000 Superseded by part number: LC30P01003P1 |
| 1. | LC30P01003P1 | [1] | DISC | KOB BRACKET -- Used After Dates 06/01/2000 - |
| 2. | ZS23C20055 | [4] | SCREW,Hex Socket Head, M20 x 55mm | KOB M20x2.5x55mm |
| 3. | ZN18F10008 | [12] | NUT | KOB M10x1.25mm |
| 4. | ZW16H10000 | [12] | WASHER | KOB ID 11 x OD 24 x Th 3.2mm |
| 5. | 2418R272F2 | [1] | COUPLING | KOB Assembly, Years: 27-APR-99-10-JUL-02 |
| 5-1. | 2418R219S1 | [1] | ELEMENT | KOB ELEMENT |
| 5-2. | 2418R272S2 | [1] | HUB | KOB |
| 5-3. | 2418R219S3 | [4] | INSERT | KOB ALUMINUM |
| 5-4. | 2418R219S4 | [4] | INSERT | KOB ALUMINUM |
| 5. | LC30P00007F1 | [1] | COUPLING JOINT | KOB See Fig 01-014-01, Start Year: 10-JUL-02 |
| 6. | ZP26D05010 | [12] | PIN | KOB Roll -- OD 05 x 10mm Long |
| 7. | ZS23C18055 | [8] | SCREW,Hex Socket Head, M18 x 55mm | KOB M18x2.50x55mm |
| 8. | ZS73C16025 | [2] | SET SCREW | KOB Screw, Set -- M16x2.0x25mm |
