Volvo EC180B Excavator Hydraulic Pump Unit VOE14533644 EC160B K5V80DT
VOE14533644 EC160B K5V80DT Hydraulic Pump Unit For Volvo EC180B Excavator
|
Description |
EC160B Piston Pump, EC180B Pump, EC160B Hydraulic Pump |
|
Application |
Volvo EC160B Excavator |
|
Model |
EC180B |
|
Part No. |
VOE14533644, 14533644, K5V80DT-1PDR-9N0Y-MZU |
|
Quality |
100% new pump, China aftermarket or Korea |
|
Weight |
90-100 kgs |
|
Packing |
Pack into wooden |
|
MOQ |
1PC |
|
Lead time |
About 1-3 working days |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
6 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Tips: To ensure client buy correct parts from China, parts details like model, part no. pump code, photo or size are required.
more details more good, all these infos are aim to supply you CORRECT parts to fit well with machine.

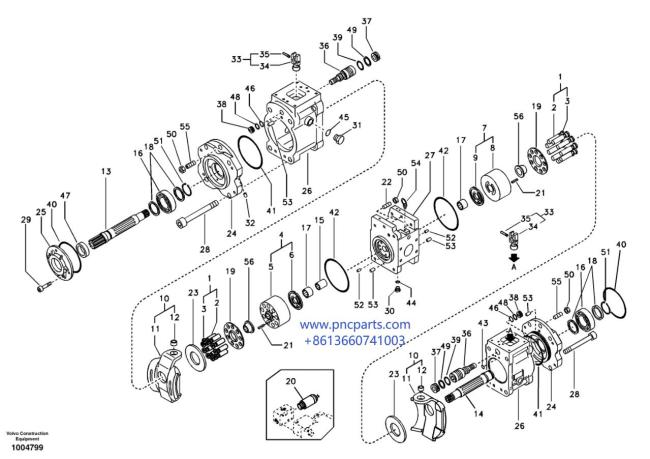

Parts on group EC160B hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14533644 | [1] | Pump | ||
| 1. | VOE14567022 | [2] | Piston | |
| 2. | VOE14508515 | [9] | Piston | |
| 3. | SA8230-28650 | [9] | Seat | |
| 4. | VOE14508516 | [1] | Cylinder | |
| 5. | VOE14508523 | [1] | Block | |
| 6. | SA8230-30550 | [1] | Plate | |
| 7. | VOE14604488 | [1] | Cylinder | |
| 8. | VOE14508523 | [1] | Block | |
| 9. | VOE14502013 | [1] | Plate | |
| 10. | SA8230-32220 | [2] | Plate | |
| 11. | [1] | Plate | ||
| 12. | VOE14501609 | [1] | Bushing | |
| 13. | VOE14508506 | [1] | Shaft | |
| 14. | VOE14508510 | [1] | Shaft | |
| 15. | SA8230-28280 | [1] | Snap-on coupling | |
| 16. | SA8230-25430 | [2] | Roller bearing | |
| 17. | VOE14508512 | [2] | Needle bearing | |
| 18. | VOE14508513 | [4] | Spacer | |
| 19. | VOE14508521 | [2] | Plate | |
| 20. | SA8230-32080 | [1] | Valve | |
| 21. | SA8230-09380 | [18] | Spring | |
| 22. | SA8230-09420 | [2] | Bolt | |
| 23. | SA8230-09620 | [2] | Plate | |
| 24. | SA8230-32180 | [2] | Support | |
| 25. | VOE14508525 | [1] | Cover | |
| 26. | VOE14567020 | [2] | Pump housing | |
| 27. | SA8230-08920 | [1] | Valve body | |
| 28. | SA8230-09390 | [8] | Bolt | |
| 29. | SA8230-25840 | [4] | Bolt | |
| 30. | VOE14883837 | [2] | Plug | |
| 31. | SA8230-26050 | [4] | Plug | |
| 32. | VOE14560637 | [15] | Plug | |
| 33. | VOE14508526 | [2] | Pin | |
| 34. | VOE14508527 | [1] | Pin | |
| 35. | [1] | Pin | ||
| 36. | VOE14508528 | [2] | Piston | |
| 37. | VOE14511631 | [2] | Stop ring | |
| 38. | SA8230-09410 | [2] | Plate | |
| 39. | VOE14528251 | [2] | O-ring | |
| 40. | VOE14534033 | [2] | O-ring | |
| 41. | VOE14534032 | [2] | O-ring | |
| 42. | VOE14534031 | [2] | O-ring | |
| 43. | VOE14533604 | [18] | O-ring | |
| 44. | VOE14534029 | [2] | O-ring | |
| 45. | VOE14534028 | [3] | O-ring | |
| 46. | VOE14528250 | [2] | O-ring | |
| 47. | VOE14579047 | [1] | Seal | |
| 48. | SA9566-10160 | [2] | Back-up ring | |
| 49. | VOE14880837 | [2] | Back-up ring | |
| 50. | SA8230-25620 | [4] | Nut | |
| 51. | SA8230-25970 | [2] | Ring | |
| 52. | SA8230-26400 | [2] | Pin | |
| 53. | SA7223-00660 | [4] | Spring pin | |
| 54. | VOE14623509 | [2] | Eye bolt | |
| 55. | SA8230-26780 | [2] | Bolt | |
| 56. | VOE14508524 | [2] | Bushing | |
| 100. | VOE14556098 | [1] | Seal |
Warranty Statement:
1. Warranty Type: We will replace the product which have quality problem.
2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.
Contact with us and offer the data, photos of the problem items
3. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
