R210-7 Sun Shaft XKAH-00017 Hyundai R210-7 XKAY-00448 Motor Shaft Travel
Price:
USD 20-40/PC
MOQ:
1set
Delivery Time:
1-3 working days
Brand:
PNC
Product Description
R210-7 Sun Shaft XKAH-00017 Hyundai R210-7 XKAY-00448 Motor Shaft Travel
|
Description |
R210-7 Sun Shaft, R210-7 Sun Gear, R210-7 Motor Shaft |
|
Application |
Hyundai 7-Series Crawler Excavator |
|
Model |
R140LC-7, R180LC7, R210LC7, R210NLC7 |
|
Part No. |
XKAH-00017, XKAY-00448 |
|
Quality |
OEM quality, China made |
|
Weight |
1-3kgs |
|
Packing |
Light items pack with carton box, heavy items pack into wooden |
|
MOQ |
1PC |
|
Lead time |
About 1-3 working days |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
3 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |

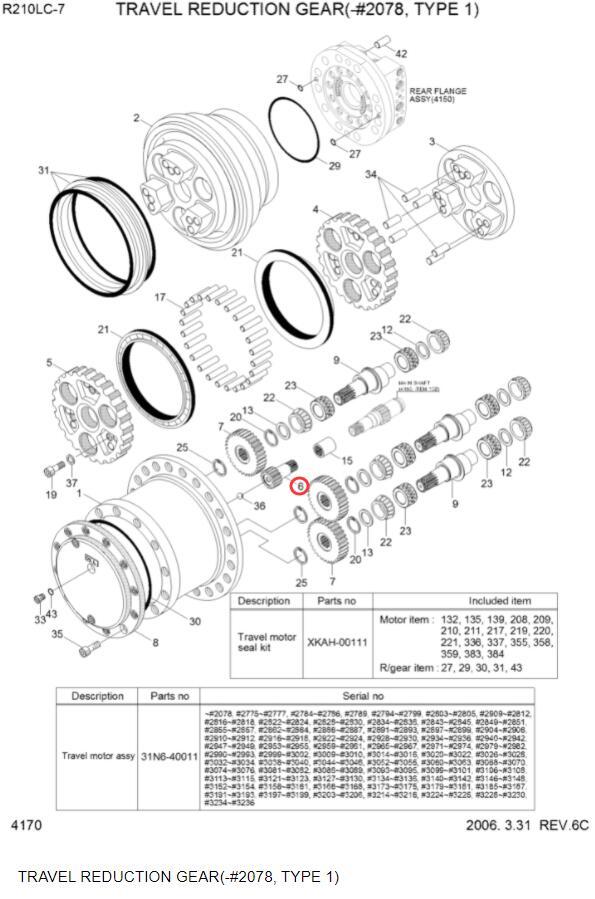

Parts on group TRAVEL REDUCTION GEAR(-#2078, TYPE 1):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | XKAH-00112 | [1] | REDUCTION GEAR | SEE 4150 |
| *. | XKAH-00312 | [1] | REDUCTION GEAR | SEE 4150 |
| *. | XKAH-00452 | [1] | REDUCTION GEAR | SEE 4310 |
| *. | XKAH-00312 | [1] | REDUCTION GEAR | SEE 4150 |
| 1. | XKAH-00001 | [1] | HUB | SEE 4150 |
| 1. | XKAH-00311 | [1] | HUB | SEE 4150 |
| N1. | XKAH-00451 | [1] | HUB | SEE 4310 |
| 1. | XKAH-00311 | [1] | HUB | SEE 4150 |
| *-1. | XKAH-00002 | [1] | SPINDLE KIT | |
| *-11. | XKAH-00003 | [1] | SPINDLE ASSY | |
| N2. | XKAH-00004 | [1] | SPINDLE | |
| N3. | XKAH-00005 | [1] | HOLDER-FLANGE | |
| 19. | XKAH-00006 | [3] | BOLT-SOCKET | |
| 34. | XKAH-00007 | [6] | PIN-PARALLEL | |
| 37. | XKAH-00008 | [3] | WASHER-PLAIN | |
| *-2. | XKAH-00371 | [1] | RV GEAR ASSY | |
| *-21. | XKAH-00010 | [1] | RV GEAR KIT | |
| 4. | XKAH-00011 | [1] | RV GEAR-A | |
| 5. | XKAH-00012 | [1] | RV GEAR-B | |
| 9. | XKAH-00013 | [3] | SHAFT-CRANK | |
| 12. | XKAH-00014 | [6] | SPACER | |
| 22. | XKAH-00015 | [6] | BEARING-T/ROLLER | |
| 23. | XKAH-00016 | [6] | BEARING-NEEDLE | |
| 6. | XKAH-00017 | [1] | INPUT GEAR | |
| *-3. | XKAH-00018 | [1] | GEAR-SPUR KIT | |
| 7. | XKAH-00019 | [3] | GEAR-SPUR | |
| 8. | XKAH-00020 | [1] | COVER | |
| 13. | @ | [3] | PIECE-DISTANCE | |
| 13-1. | XKAH-00850 | [AR] | PIECE(3.75-3.80T) | |
| 13-2. | XKAH-00851 | [AR] | PIECE(3.80-3.85T) | |
| 13-3. | XKAH-00852 | [AR] | PIECE(3.85-3.90T) | |
| 13-4. | XKAH-00853 | [AR] | PIECE(3.90-3.95T) | |
| 13-5. | XKAH-00854 | [AR] | PIECE(3.95-4.00T) | |
| 15. | XKAH-00022 | [1] | COUPLING | |
| 17. | XKAH-00023 | [24] | PIN | |
| 20. | XKAH-00024 | [3] | RING-SNAP | |
| 21. | XKAH-00025 | [2] | BEARING-BALL | |
| 25. | XKAH-00026 | [3] | RING-SNAP | |
| K27. | XKAH-00027 | [2] | O-RING | |
| K29. | XKAH-00028 | [1] | O-RING | |
| K30. | XKAH-00029 | [1] | O-RING | |
| *-4. | XKAH-00372 | [1] | FLOATING SEAL KIT | |
| KN31. | XKAH-00031 | [2] | SEAL-FLOATING | |
| 33. | XKAH-00032 | [3] | PLUG-RO | |
| 35. | XKAH-00110 | [12] | BOLT-SOCKET | |
| 36. | XKAH-00033 | [1] | BALL-STEEL | |
| 42. | XKAH-00034 | [2] | PIN-PARALLEL | |
| K43. | XKAH-00035 | [3] | O-RING | |
| N. | @ | [AR] | NOT SUPPLIED PARTS | |
| K. | XKAH-00111 | [1] | SEAL KIT | SEE ILLUST |
