PC200-8 Air Conditioner Assembly 20Y-810-1211 Komatsu Air Conditioner Unit

Price Negotiable

Price: USD 599-645/pc

MOQ: 1pc

Delivery Time: 1-2 working days

Brand: PNC

Product Description

PC200-8 Air Conditioner Assembly 20Y-810-1211 Komatsu Air Conditioner Unit

Description	PC200-8 Air Conditioner As., 20Y-810-1211 Air Conditioner Unit
Application	Komatsu PC200-8
Model	D155A, PC130-8, PC200-8, PC220-8, PC290-8K, PC300-8, PC400-8
Part No.	20Y-810-1211, 20Y8101211, 20Y-810-1212
Quality	China made
Weight	30-35kgs
Packing	Wooden box
MOQ	1PC
Lead time	About 1-3 working days
Payment	TT, Western union, Paypal, Paysend, RMB
Warranty	3 Months
Shipping Port	Huangpu Old Port, Shenzhen Yantian,Guangzhou

Compatible equipment models: 20Y-810-1211:
BULLDOZERS D155A D155AX D65EX D65PX D65WX
EXCAVATORS HB205 HB215 PC130 PC160 PC190 PC200 PC210 PC220 PC230NHD PC240 PC270 PC290 PC300

PC300HD PC350 PC350HD PC400 PC450 PC550 PC600 PC650 PC700 PC800 PC800SE PC850 PC850SE PW148

PW160 PW180 Komatsu

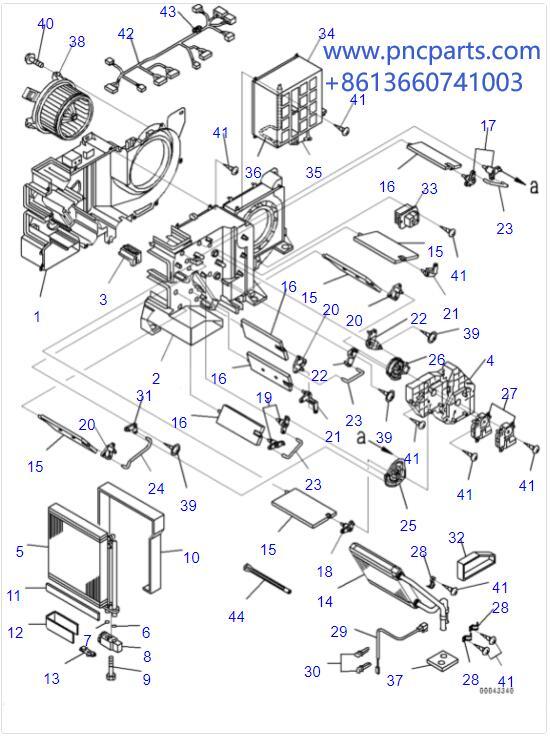

Parts on group PC220-8 cab, air conditioner unit:

Pos.	Part No	Qty	Parts name	Comments
	20Y-810-1211	[1]	Air Conditioner Assembly Komatsu	9.2 kg.
			["SN: 60001-UP"] analogs:["20Y8101212"] \|$0.
4.	ND446010-3132	[1]	Evaporator Assembly Komatsu	2.56 kg.
			["SN: 60001-UP"] analogs:["ND4460103131"]
5.	ND446600-0991	[1]	Evaporator Assembly Komatsu	2.3 kg.
			["SN: 60001-UP"] analogs:["ND4466000990", "ND4466000992", "ND4460000990"]
6.	ND949142-0020	[1]	O-ring Komatsu	0.001 kg.
			["SN: 60001-UP"] analogs:["20Y9793140"]
7.	ND949142-0030	[1]	O-ring Komatsu	0.001 kg.
			["SN: 60001-UP"] analogs:["20Y9793130"]
8.	ND447500-4760	[1]	Valve, Expansion Komatsu China
			["SN: 63600-UP"]
8.	ND447500-2750	[1]	Valve, Expansion Komatsu	0.15 kg.
			["SN: 60001-UP"]
14.	ND116140-0050	[1]	Core Subassembly, Heater Komatsu China	41.101 kg.
			["SN: 60001-UP"]
35.	ND063600-4580	[1]	Servo Motor Assembly Komatsu	0.16 kg.
			["SN: 60001-UP"]
36.	ND077500-5650	[1]	Thermistor Assembly Komatsu	0.01 kg.
			["SN: 60001-UP"]
37.	ND146657-8860	[1]	Packing Komatsu	0.006 kg.
			["SN: 60001-UP"]
38.	ND116340-7350	[1]	Motor Assembly Komatsu OEM	1.95 kg.

42.	ND246470-4311	[1]	Wiring Harness Assembly Komatsu	0.4 kg.
