11N6-90220 Air Con Unit R210-7 Hyundai Air Conditioner Assy 11N690220
11N6-90220 Air Con Unit R210-7 Hyundai Air Conditioner Assy 11N690220
|
Description |
R210-7 Air Con Unit, Hyundai Air Conditioner Unit, R320-7 Air Conditioner Assy |
|
Application |
Hyundai R210-7 Excavator |
|
Model |
R140-7, R210-7, R200W-7, R305-7, R450-7 |
|
Part No. |
11N6-90220, 11N690220 |
|
Quality |
China made |
|
Weight |
30-35kgs |
|
Packing |
Wooden box |
|
MOQ |
1PC |
|
Lead time |
About 1-3 working days |
|
Payment |
TT, Western union, Paypal, Paysend, RMB |
|
Warranty |
3 Months |
|
Shipping Port |
Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Compatible models 11N6-90220:
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R200W7
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R180LC7 R210LC7 R250LC7 R290LC7 R305LC7 R320LC7
R360LC7 R450LC7 RD510LC-7 Hyundai
Other R210-7 excavator parts we supply:
| XKAQ-00208 | 20PS982-2 | 11N6-90780 |
| XKAQ-00226 | XKAQ-00908 | 11NB-70410 |
| XKAH-00908 | XKAQ-00233 | 21N6-20211 |
| XKAQ-00653 | XKAQ-00226 | 21N6-20311 24V |
| XKAQ-00219 | XKAQ-00208 | 31N6-17400 |
| XKAQ-00220 | XKAQ-00235 | 31N8-17430 |
| 110H | KDRDE5K-20/40C07-203A | 3864274 |
| 21N6-44100 | 11N7-10020 110H | KDRDE5K-20/40C07-109 |
| XKAQ-00218 | XKAQ-00220 | XJBN-00162 |
| XKAQ-00243 | XKAQ-00219 | XJBN-00653 |

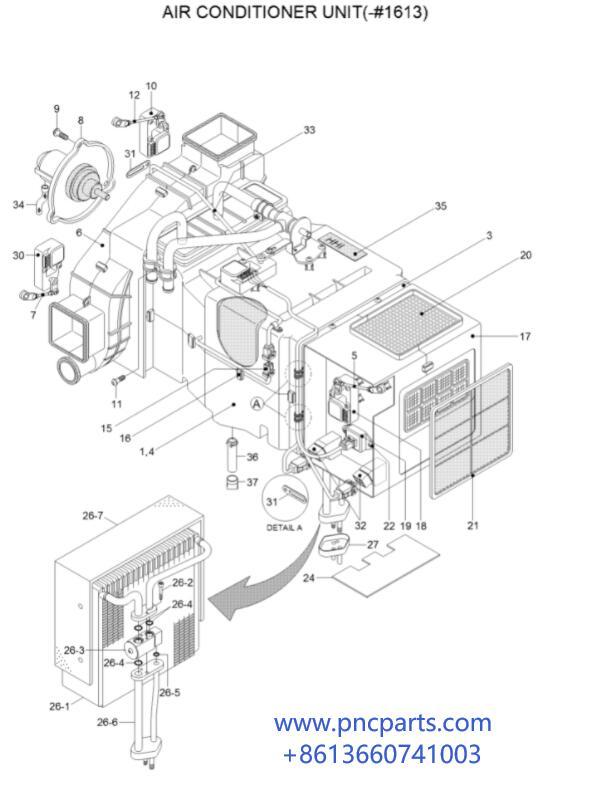

Parts on group R210-7 AIR CONDITIONER UNIT(-#1613):
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | 11N6-90220 | [1] | AIR CON UNIT | |
| 1. | AM12101400-0 | [1] | HVAC CASE-LOW | |
| 3. | AM11101602-0 | [1] | HVAC CASE-UPP | |
| 4. | AM75001000-2 | [1] | EVAC-INSULATION-LOW | |
| 5. | AM52300100-4 | [1] | ROD-INTAKE | |
| 6. | AW10001400-2 | [1] | BLOWER CASE ASSY | |
| 7. | AW70002400-4 | [1] | ROD-DEF/FOOT | |
| 8. | 11N6-90700 | [1] | FAN & MOTOR | |
| 8-1. | AW22000800-2 | [1] | FAN | |
| 8-2. | AW21002500-1 | [1] | MOTOR | |
| 9. | 4AH-0886 | [3] | SCREW | |
| 10. | 11N6-90710 | [1] | MOTOR ACT-VENT | |
| 11. | K500531 | [29] | SCREW | |
| 12. | AW70002300-4 | [1] | ROD-VENT | |
| 15. | A165400100-2 | [1] | SENSOR-DUCT | ILL. CHANGE |
| 16. | 4AH-0688 | [9] | CLIP-CASE | |
| 17. | AM13000203-2 | [1] | INTAKE CASE ASSY | |
| 18. | 11N6-90740 | [1] | MOTOR ACT-INTAKE | |
| 19. | 11N6-90750 | [1] | RESISTOR | |
| 20. | 11N6-90760 | [1] | AIR FILTER-FRESH | |
| 21. | 11N6-90770 | [1] | AIR FILTER-RE | |
| 22. | K500533 | [2] | SCREW | |
| 24. | A112050700-3 | [1] | PLATE-SIDE | |
| 26. | 11N6-90790 | [1] | EVAP CORE ASSY |
