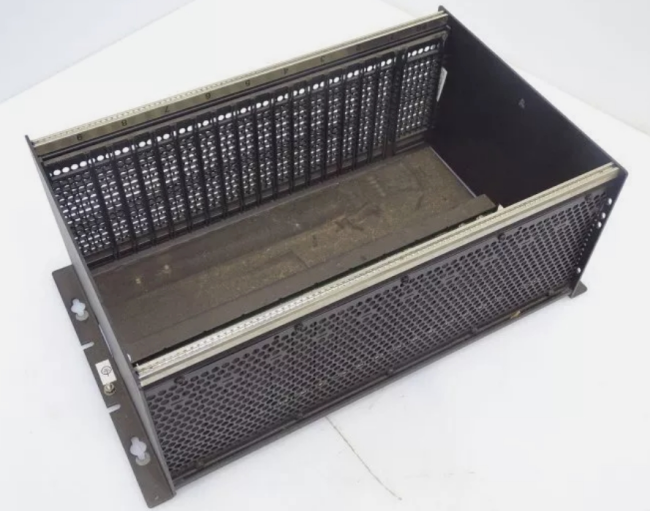

IC697CHS782 GE CPU PLC Rack 17 Slot Series 90-70 Rear Mount VEM Integrator
IC697CHS782 GE CPU PLC Rack 17 Slot Series 90-70 Rear Mount VEM Integrator
Product Details:
| Brand Name | GE |
| Model | IC697CHS782 |
| Catalog | IC697 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $600 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Features |
| Accepts 3rd Party VME modules, which require 0.8" spacing. |
| Accepts all IC697 PLC module types. |
| Rear-mount rack mounts in a 10" (254 mm) deep enclosure. |
| Front-mount rack mounts in a standard 19" (483 mm) rack. |
| Accepts plug-in AC/DC and DC IC697 power supplies, or can use external supply (Power Supply Adapter module required). |
| Provision for two-rack operation from single power supply. |
| Provision for power supply for high-current configurations. |
| Optional accessory kit available for adding J2 backplane or making ribbon cable connections to J2 backplanes. |
| Optional fan assembly (for high-power modules). |
Description:
The VME Integrator Rack for the IC697 Programmable Logic Controller can be used for 3rd party VME modules and all IC697 CPU and I/O configurations, except redundancy applications.
This rack has a 17-slot backplane and is designed to provide easy integration of 3rd party VME modules into an IC697 PLC system.
Integration of 3rd Party VME modules must be in accordance with guidelines which are described in the User’s Guide to Integration of 3rd Party VME Modules.
Backplane connectors are spaced on 0.8" centers to accommodate 3rd party VME modules. Each IC697 module uses two of these slots.
Standard IC697 racks have slots spaced on 1.6" centers for IC697 modules. VME modules that require 0.8" spacing for installation in a rack may not fit in the standard IC697 racks (IC697CHS750/790/791).
