3500/15 128277-01 Bently Nevada Power Supply Asset Condition Monitoring
Price:
$1500
MOQ:
1 Piece
Delivery Time:
3-5 work days
Brand:
Bently Nevada
Product Description

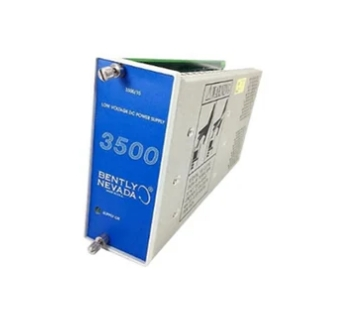

3500/15 128277-01 Bently Nevada Power Supply Asset Condition Monitoring
Additional Information:
| 3500/15 AXX - BXX - CXX | |
| A: Power Supply Type (Top Slot) | |
| 01 | Low Voltage AC (85 to 132 Vac rms) |
| 02 | High Voltage AC (175 to 264 Vac rms) |
| 03 | High Voltage DC (88 to 140 Vdc) |
| 04 | Low Voltage DC (20 to 30 Vdc) |
| 05 | Universal AC Voltage (85 to 264 Vac rms) |
| B: Power Supply Type (Bottom Slot) | |
| 00 | No supply (Used when no supply is required) |
| 01 | Low Voltage AC (85 to 132 Vac rms) |
| 02 | High Voltage AC (175 to 264 Vac rms) |
| 03 | High Voltage AC (88 to 140 Vdc) |
| 04 | Low Voltage AC (20 to 30 Vdc) |
| 05 | Universal AC Voltage (85 to 264 Vac rms) |
| C: Agency Approval | |
| 00 | None |
| 01 | CSA / NRTL / C (Class 1, Division 2) |
| 02 | ATEX / IECEx / CSA (Class 1, Zone 2) |
Description:
The 3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one ortwo power supplies with any combinations of AC and DC. Either supply can power a fullrack.

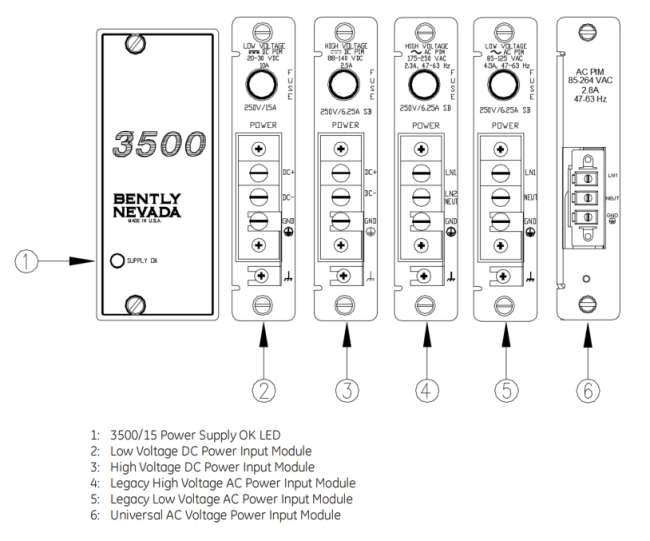

The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
- Legacy AC Power
- Universal AC Power
- High Voltage DC Power Supply
- Low Voltage DC Power Supply
Product Details:
| Brand Name | Bently Nevada |
| Model | 3500/15 |
| Ordering information | 128277-01 |
| Catalog | 3500 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $1500 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Datasheet Link:
