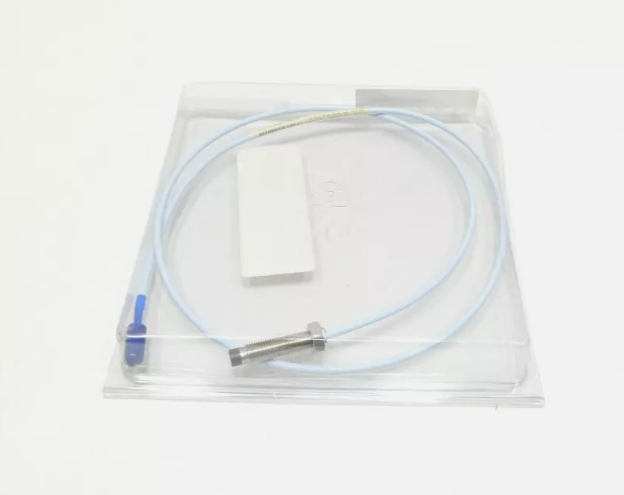

330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe 3/8-24 UNF Thread, Without Armor
330101-00-58-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread, Without Armor
Description:
The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe,
- One 3300 XL extension cable1 , and
- One 3300 XL Proximitor Sensor.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.
The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals.
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330101-00-58-10-02-00 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:

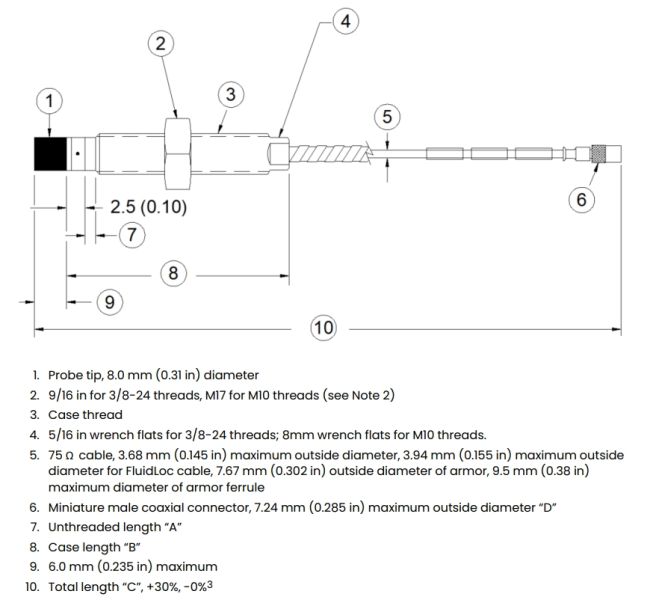

| Part Number-AA-BB-CC-DD-EE | |
| A: Unthreaded Length Option | |
| Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in. | |
| B: Overall Case Length Option | |
| Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in. | |
| C: Total Length Option | |
| 05 | 0.5 meter (1.6 feet) |
| 10 | 1.0 meter (3.3 feet) |
| 15 | 1.5 meter (4.9 feet) |
| 20 | 2.0 meters (6.6 feet) |
| 30 | 3.0 meters (9.8 feet) |
| 50 | 5.0 meters (16.4 feet) |
| 90 | 9.0 meters (29.5 feet) |
| D: Connector and Cable-Type Option | |
| 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| 02 | Miniature coaxial ClickLoc connector, standard cable |
| 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: Agency Approval Option | |
| 00 | Not required |
| 05 | CSA, ATEX, IECEx Approvals |
Datasheet Link:
