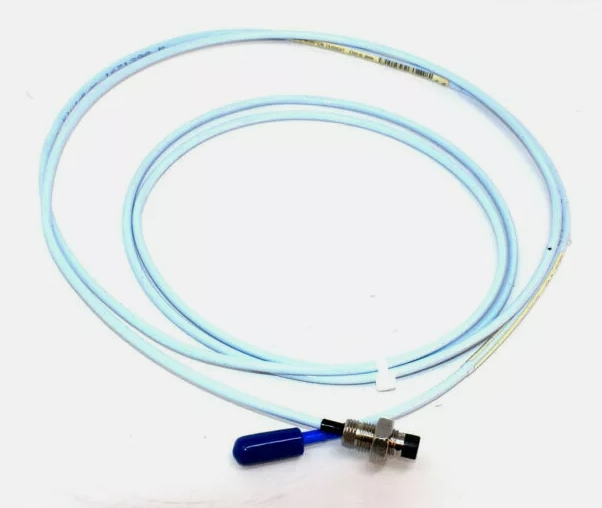

330171-00-26-10-02-00 3300 Bently Nevada 5mm Probe 1/4-28 UNF Thread Without Armor
330171-00-26-10-02-00 3300 Bently Nevada 5mm Probe, 1/4-28 UNF Thread Without Armor
Description:

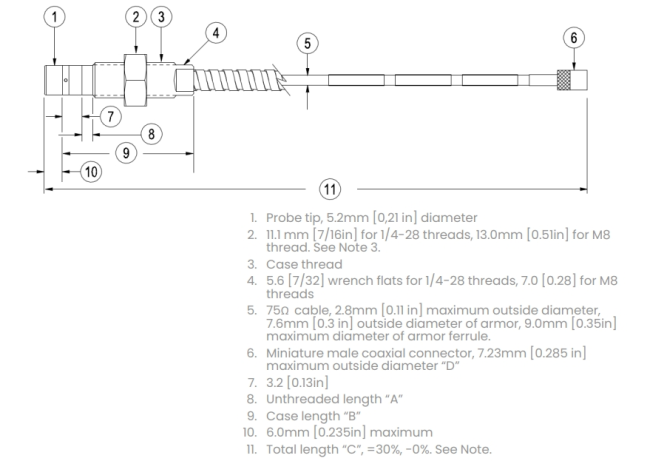

Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option
Length configurations: Maximum unthreaded
length: 8 8 = 8.8 in. Minimum unthreaded
length: 0 0 = 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Threaded Length configurations:
Maximum unthreaded length: 9 6 = 9.6 in.
Minimum unthreaded length: 0 8 = 0.8 in.
Example:2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
D: Connector Option
01 Miniature coaxial ClickLoc connector with connector protector, standard cable
02 Miniature coaxial ClickLoc connector, standard cable
11 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
00 Agency Approval Option
05 Multiple Approvals
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300 |
| Ordering information | 330171-00-26-10-02-00 |
| Catalog | 3300 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Temperature Schedule | |
| Temperature Classification | Ambient Temperature (Probe Only) |
| For EPL Ga and Gc | |
| T1 | -55ºC to +232ºC |
| T2 | -55ºC to +177ºC |
| T3 | -55ºC to +120ºC |
| T4 | -55ºC to +80ºC |
| T5 | -55ºC to +40ºC |
| For EPL Dc | |
| T280C @ Ta | -55ºC to +232ºC |
| T225C @ Ta | -55ºC to +177ºC |
| T170C @ Ta | -55ºC to +120ºC |
| T130C @ Ta | -55ºC to +80ºC |
| T90C @ Ta | -55ºC to +40ºC |
Datasheet Link:
