330171-00-40-10-02-00 3300 Bently Nevada 5mm Probe 1/4-28 UNF Thread Without Armor
330171-00-40-10-02-00 3300 Bently Nevada 5mm Probe, 1/4-28 UNF Thread Without Armor
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300 |
| Ordering information | 330171-00-40-10-02-00 |
| Catalog | 3300 |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:

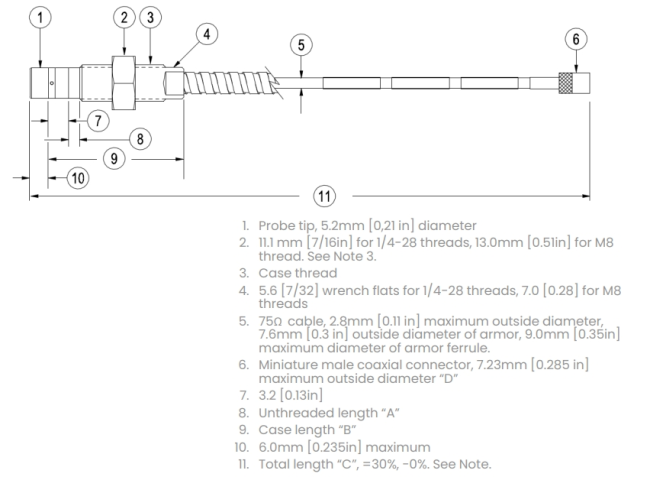

| Part Number-AA-BB-CC-DD-EE | |
| A: Unthreaded Length Option | |
|
Length configurations: Maximum unthreaded length: 8 8 = 8.8 in. Minimum unthreaded length: 0 0 = 0.0 in. Example: 0 4 = 0.4 in. |
|
| B: Overall Case Length Option | |
|
Order in increments of 0.1 in. Threaded Length configurations: Maximum unthreaded length: 9 6 = 9.6 in. Minimum unthreaded length: 0 8 = 0.8 in. Example:2 4 = 2.4 in. |
|
| C: Total Length Option | |
| 05 | 0.5 meter (1.6 feet) |
| 10 | 1.0 meter (3.3 feet) |
| 20 | 2.0 meters (6.6 feet) |
| 50 | 5.0 meters (16.4 feet) |
| 90 | 9.0 meters (29.5 feet) |
| D: Connector Option | |
| 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| 02 | Miniature coaxial ClickLoc connector, standard cable |
| 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: Agency Approval Option | |
| 00 | Agency Approval Option |
| 05 | Multiple Approvals |
Description:
The 3300 XL 11 mm Proximity Transducer System consists of:
- 3300 XL 11 mm probe
- 3300 XL 11 mm extension cable
- 3300 XL 11 mm Proximitor Sensor
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components.
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration.
Unless otherwise noted, the following specifications are for a 3300 XL 11 mm Proximitor Sensor, extension cable and probe between 0°C and +45°C (+32°F to +113°F) at a maximum altitude of 2000m, with a -24 Vdc power supply, a 10 kΩ load, our supplied AISI 4140 steel target that is 31 mm (1.2 in) diameter or larger, and a probe gap of 2.5 mm (100 mils).
Datasheet Link:
