330104-08-16-05-02-05 3300XL Bently Nevada 3300 XL 8 Mm Probe M10 X 1 Thread With Armor
Price:
$400
MOQ:
1 Piece
Delivery Time:
3-5 work days
Brand:
Bently Nevada
Product Description
330104-08-16-05-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread With Armor
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330104-08-16-05-02-05 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Temperature Classification | Ambient Temperature (Probe Only) |
| For EPL Ga and Gc | |
| T1 | -55°C to +232°C |
| T2 | -55°C to +177°C |
| T3 | -55°C to +120°C |
| T4 | -55°C to +80°C |
| T5 | -55°C to +40°C |
| For EPL Dc | |
| T280°C @ Ta | -55°C to +232°C |
| T225°C @ Ta | -55°C to +177°C |
| T170°C @ Ta | -55C to +120°C |
| T130°C @ Ta | -55°C to +80°C |
| T105°C @ Ta | -55°C to +100°C |
| T90°C @ Ta | -55°C to +40°C |
Description:
The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe

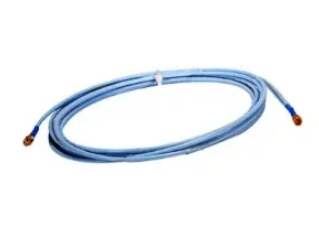

- One 3300 XL extension cable1 , and
- One 3300 XL Proximitor Sensor.
- Probe tip, 8.0 mm (0.31 in) diameter
- 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2)
- Case thread
- 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads.
- 75 Ω cable, 3.68 mm (0.145 in) maximum outside diameter, 3.94 mm (0.155 in) maximum outside diameter for FluidLoc cable, 7.67 mm (0.302 in) outside diameter of armor, 9.5 mm (0.38 in) maximum diameter of armor ferrule
- Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”
- Unthreaded length “A”
- Case length “B”
- 6.0 mm (0.235 in) maximum
- Total length “C”, +30%, -0%3
Datasheet Link:
