330104-00-14-10-02-00 3300XL Bently Nevada 3300 XL 8 Mm Probe M10 X 1 Thread With Armor
330104-00-14-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread With Armor
Additional Information:
| Nominal Probe DC Resistance | |
| Resistance (RPROBE) from Center Conductor to Outer Conductor | |
| Probe Length (m) | RPROBE(Ω) |
| 0.5 | 7.45 ± 0.50 |
| 1.0 | 7.59 ± 0.50 |
| 1.5 | 7.73 ± 0.50 |
| 2.0 | 7.88 ± 0.50 |
| 3.0 | 8.17 ± 0.50 |
| 5.0 | 8.73 ± 0.50 |
| 9.0 | 9.87 ± 0.50 |
Description:
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

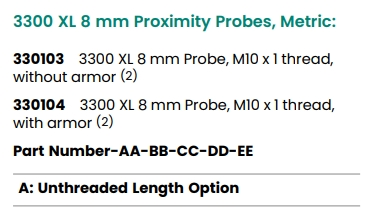

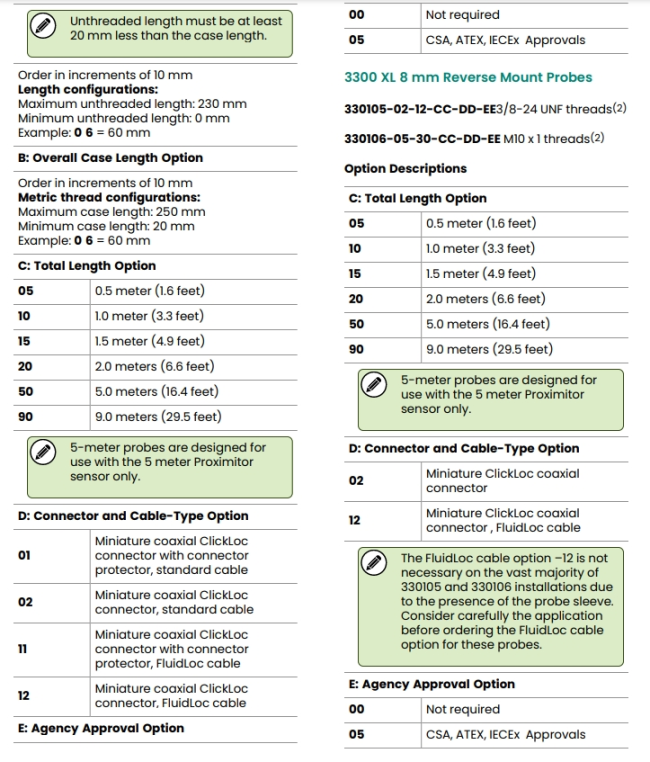

Probe Ordering Information Notes:
1. Mounting clamps must be ordered separately for 330140, 330141, 330197, and 330198.
2.For a shorter delivery time, order commonly stocked probes. The following part numbers are currently stocked probes:
330101-00-08-05-02-00, 330101-00-08-05-02- 05, 330101-00-08-10-02-00, 330101-00-08-10- 02-05, 330101-00-12-10-02-00, 330101-00-12-10- 02-05, 330101-00-16-10-02-00, 330101-00-16- 10-02-05, 330101-00-20-05-02-00, 330101-00- 20-10-02-00, 330101-00-20-10-02-05, 330101- 00-30-10-02-00, 330101-00-30-10-02-05, 330101-00-40-05-02-00, 330101-00-40-10-02- 00, 330101-00-40-10-02-05, 330101-00-60-10- 02-00, 330101-00-60-10-02-05, 330102-00-20- 10-02-00, 330103-00-02-10-02-05, 330103-00- 04-10-02-00, 330103-00-05-10-02-00, 330104- 00-06-10-02-00, 330104-01-05-50-02-00, 330105-02-12-05-02-00, 330105-02-12-05-02- 05, 330105-02-12-10-02-00, 330105-02-12-10- 02-05, 330106-05-30-05-02-00, 330106-05- 30-05-02-05, 330106-05-30-10-02-00, 330106- 05-30-10-02-05.
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330104-00-14-10-02-00 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Datasheet Link:
