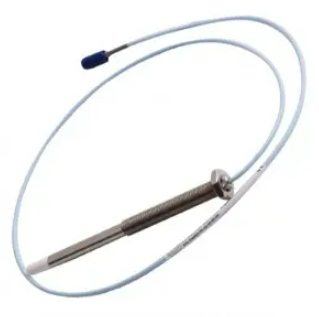

330103-03-10-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread Without Armor
330103-03-10-10-02-00 3300XL Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread Without armor
Description:
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
- One 3300 XL 8 mm probe
- One 3300 XL extension cable
- One 3300 XL Proximitor Sensor
The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330103-03-10-10-02-00 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Part Number-AA-BB-CC-DD-EE | |
| A: Unthreaded Length Option | |
|
Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in. |
|
| B: Overall Case Length Option | |
|
Order in increments of 0.1 in. Standard thread configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in. |
|
| C: Total Length Option | |
| 05 | 0.5 meter (1.6 feet) |
| 10 | 1.0 meter (3.3 feet) |
| 15 | 1.5 meter (4.9 feet) |
| 20 | 2.0 meters (6.6 feet) |
| 30 | 3.0 meters (9.8 feet) |
| 50 | 5.0 meters (16.4 feet) |
| 90 | 9.0 meters (29.5 feet) |
| D: Connector and Cable-Type Option | |
| 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| 02 | Miniature coaxial ClickLoc connector, standard cable |
| 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: Agency Approval Option | |
| 00 | Not required |
| 05 | CSA, ATEX, IECEx Approvals |
Datasheet Link:
