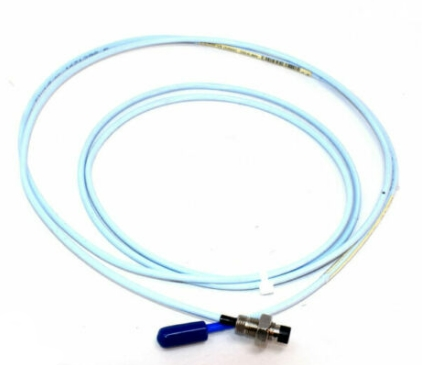

330101-00-48-10-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread Without Armor
330101-00-48-10-02-05 3300XL Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNF Thread Without Armor
Additional Information:
| Connector-to-Connector Recommended Torque | |
| Connector Type | Tightening Instructions |
| Two 3300 XL gold "click" type connectors |
Finger tight
|
| One non-XL stainless steel connector and one 3300 XL connector | Finger tight plus 1/8 turn using pliers |
| Materials | |
| Proximitor Sensor Material | A308 aluminum |
| Connector Material | Gold-plated brass or goldplated beryllium copper. |
| Length | |
| System Length | 5 or 9 meters (including extension cable) or 1 meter (probe only). |
Description:

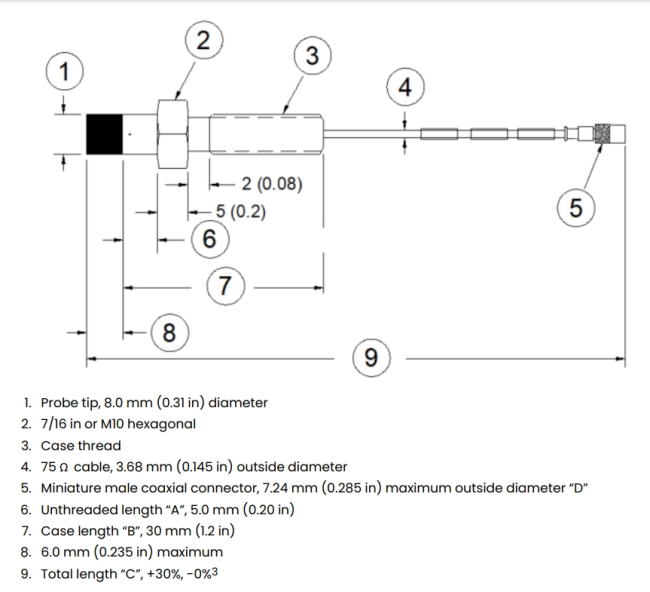

3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton® O ring. Probes are not pressure tested prior to shipment. Contact our custom design department if you require a test of the pressure seal for your application.
Maximum thread engagement lengths are per the industry standard of 1.5 times the nominal thread diameter. A fit class matching that of the external probe thread is assumed for all internal threads.
3300XL 8mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. Although the packaging of the 3300 XL Proximitor Sensor differs from its predecessor, its design fits in the same 4-hole mounting pattern when used with the 4-hole mounting base, and will fit within the same mounting space specifications (when minimum permissible cable bend radius is observed).
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330101-00-48-10-02-05 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Datasheet Link:
