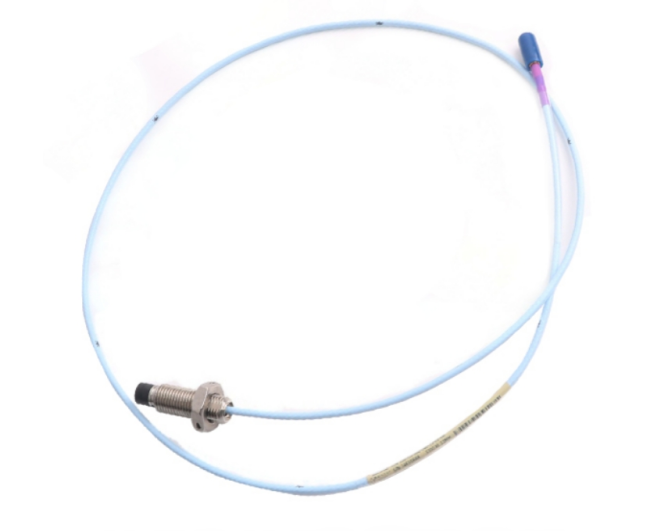

330703-000-080-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Transducer System
330703-000-080-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Transducer System
Product Details:
| Brand Name | Bently Nevada |
| Model | 330703-000-080-10-02-00 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $800 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Proximitor Sensor | |
| Input | Accepts one non-contacting 3300 XL 11 mm Proximity Probe and Extension Cable. |
| Power | Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range |
| Supply Sensitivity | Less than 2 mV change in output voltage per volt change in input voltage. |
Description:
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
3300 XL Probes and Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection2. Additionally, the 3300 XL 11 mm probe comes standard with a locknut with pre-drilled safety wire holes.
Silicone tape is also provided with each 3300 XL extension cable and can be used instead of connector protectors. Silicone tape is not recommended in applications where the probe-to-extension cable connection will be exposed to turbine oil.
