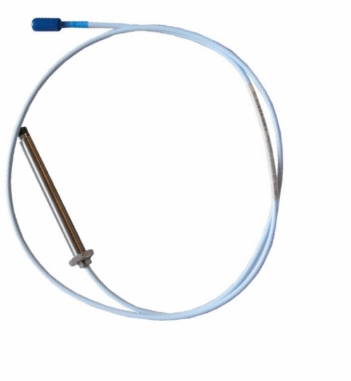

330101-00-54-10-02-00 Bently Nevada 3300 XL Series Proximitor System
330101-00-54-10-02-00 Bently Nevada 3300 XL Series Proximitor System
Product Details:
| Brand Name | Bently Nevada |
| Model | 330101-00-54-10-02-00 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±6.5% typical, including interchangeability error when measured in increments of 0.25mm (10 mils) over the linear range. |
| Deviation from Best Fit Straight Line (DSL) | Less than ±0.038mm (±1.5 mil) typical deviation from best fit straight line. |
| Probe Temperature Stability (typical) | Over probe temperature range of - 35 °C to +177 °C (-31 °F to +350 °F), the incremental scale factor remains within ±10% of 7.87 V/mm(200 mV/mil) and the deviation from the best fit straight line remains within ±0.076mm (±3 mils). |
| Frequency Response | 0 to 10 kHz: +0, -3 dB, with up to 305 metres (1000 feet) of field wiring. |
| Minimum Target Size | Minimum Target Size |
Description:
The exposed plastic surface of the Probes with 50 mm diameter, under certain extreme circumstances, may generate an ignition-capable level of electrostatic charge. Therefore, this version of the equipment shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on the plastic surface. In addition, the equipment shall only be cleaned with a damp cloth. This is particularly important if the equipment is installed in a Zone 0 location.
The end user is to ensure appropriate earthing upon installation.The connector shall not be disconnected while the circuit is live unless the area is known to be non-hazardous.
This product is not resistant to light as required by the relevant clause of EN 60079-0, therefore, it shall only be installed in a location where it is not exposed to direct sunlight or any other source of ultra-violet (UV) light.
