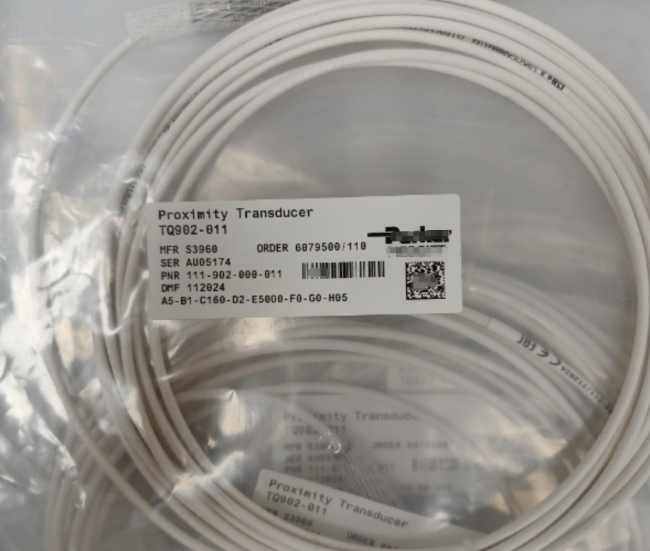

TQ902-011 111-902-000-011 A1-B1-C70-D2-E1000-F0-G0-H10 proximity measurement chains

This system from the TQ9xx product line is designed for precision proximity measurement applications. It accurately measures the distance from a sensor to moving metal components, such as machine shafts, without physical contact. The system generates a signal that varies proportionally with distance changes, making it ideal for monitoring vibration and position in industrial machinery including turbines, pumps, and compressors.

The proximity measurement system consists of three key components: a TQ9xx sensor, an optional EA90x extension cable, and an IQS900 signal conditioner. The extension cable allows for sensor wire length adjustments when required. The signal conditioner processes measurement data and transmits the final signal to monitoring systems. All components are engineered for seamless integration and interchangeability. The IQS900 also incorporates a self-test feature that automatically detects and reports system faults.
