0.74Wh 502030 3.7 V 200mah Lipo Battery Smoke Detector Lipo Lithium Polymer Battery

Price Negotiable
Price: negotiable
MOQ: 10PCS/ORDER
Delivery Time: 3-5days
Brand: Purple Horn
Product Description

Key Specifications/Special Features:

Key specifications:
  • We have more than 400 models Lithium-polymer rechargeable battery for MP3/MP4 players, Bluetooth, GPS, digital phone, PDA, if you have any interest, your inquiry will be highly appreciated
  • Thickness can be adjusted while the length and width of the battery remain the same
  • Fello-Tech can add PCM (over-charge, -discharge, -current, short-protection), add the wire or connector according to your requirements
  • Fello-Tech can also customize the sample, make tooling according to your requests or as the sample you supply
  • Battery packing can be customized according to customer's requirements

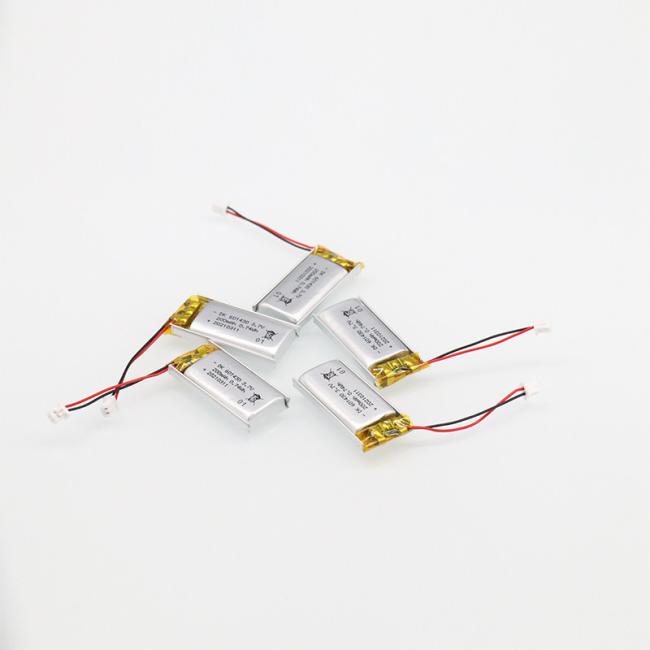

  • Figure shows the product is the conventional type battery which made by our factory, specific models could be designed and made by our factory according to your requirements
  • Description:
  • Battery model: 502030
  • Minimal capacity: 200mAh (0.2C)
  • Rated capacity: 200mAh (0.2C)
  • Nominal voltage: 3.7V
  • Over-charge protect voltage: 4.28 ±0.05V
  • Over-discharge protect voltage: 3.0 ±0.05V
  • Storage temperature: -5 to 35°C (one year)
  • Inner impedance: ≤40m&OPurple Horn;
  • Maximum continue discharge current: 1.0C
  • Maximum charge current: 1.0C
  • Applications:
  • Handy terminal, minidisc player
  • Earphones, Bluetooth devices, MP3/MP4 players, R/C toys, power-driven tools and toy
  • Camcorder, digital camera, headset stereo
  • DVD, PDA, GPS, portable, cellular phone, notebook
Products Description
Type:
Li-Polymer
Charge Current:
0.2C Standard/0.5C
Capacity:
200mAh
Charge Voltage:
3.7-4.2V
Energy:
0.74Wh
Size:
3.7mm* 24mm* 44mm
Impendence:
80 m&OPurple Horn;
Warranty Time:
12 Months
Cycle life:
Around 500 Times
Working Temperature:
Charge: 0~45 Degree, Discharge: -10~50 Degree
