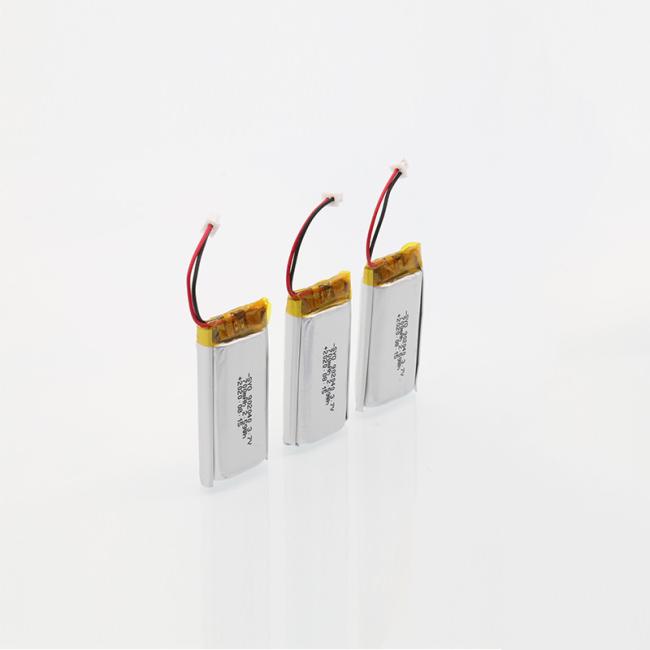

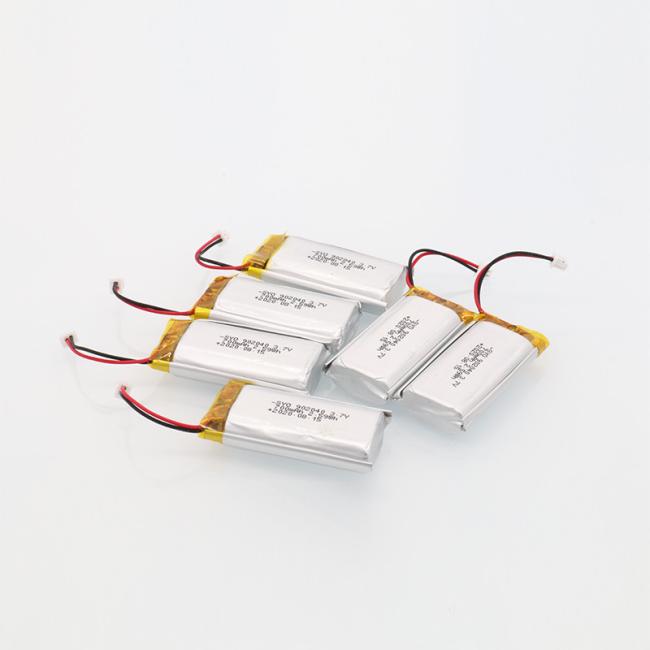

Rechargable Lithium Ion Battery Pack 3.7 V 700mah Lipo Battery 992038
Price:
negotiable
MOQ:
10PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description
Key Specifications/Special Features:
Type: Lithium polymer battery
Model: LP992038-700mAh
Nominal voltage: 3.7V
Nominal Capacity: 700mAh
Max.charge current: 1.0C
Max.discharge current: 1.0C
Charge current:
-Standard Charging: 0.5C
-Rapid charge: 1.0C
Standard Charging method: 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time:
-Standard Charging: 3.0 hours(Ref.)
-Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage: 2.45V~3.0V
Operating temperature: -20°C~+60 °C
Storage temperature: 25°C
Application: PDA, tablet PC, e-book, MID, mine lamp, bluetooth headset,MP3,MP4,MP5, power bank and so on.
Model: LP992038-700mAh
Nominal voltage: 3.7V
Nominal Capacity: 700mAh
Max.charge current: 1.0C
Max.discharge current: 1.0C
Charge current:
-Standard Charging: 0.5C
-Rapid charge: 1.0C
Standard Charging method: 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time:
-Standard Charging: 3.0 hours(Ref.)
-Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage: 2.45V~3.0V
Operating temperature: -20°C~+60 °C
Storage temperature: 25°C
Application: PDA, tablet PC, e-book, MID, mine lamp, bluetooth headset,MP3,MP4,MP5, power bank and so on.
Product Description
OEM/ODM Products are avaliable. Customer's logo or typical design can be shown in battery products based on mutual discussion.
We are looking forward for long trem,cooperation,wholesales,resellers,importers,
Agents Worldwide!
| Nominal Voltage/Capacity | 3.7V/700mAh |
| Cell Type | Li-polymer |
| Configurations | 1S1P |
| Max Continuous Discharge Rate | 20C |
| Max Burst Rate | 40c |
| Discharge(Output) Lead | JST |
| Charging(Balancing) Lead | Silica gel line with two Pin-hole |
| Dimensions(L*W*H) | 9x 25x 40mm |
| Operating Temperature Range | -20℃to 60℃ |
| PVC color | White |
| Weight | 18g |
