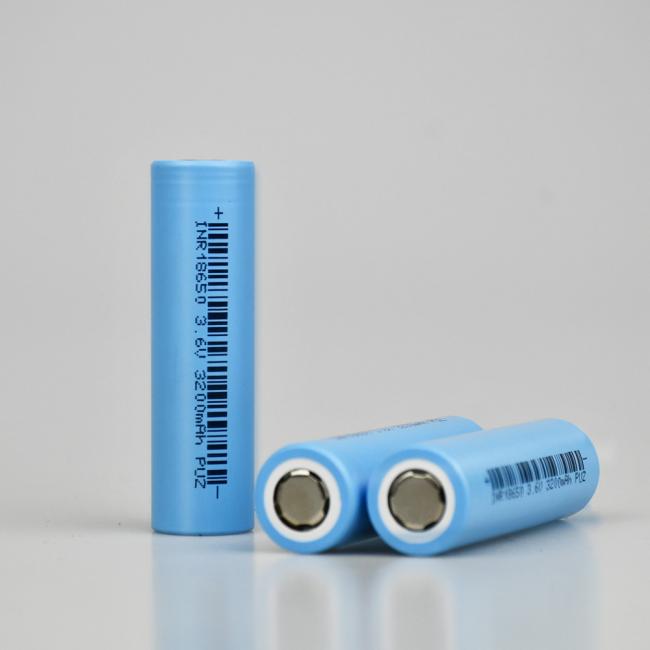

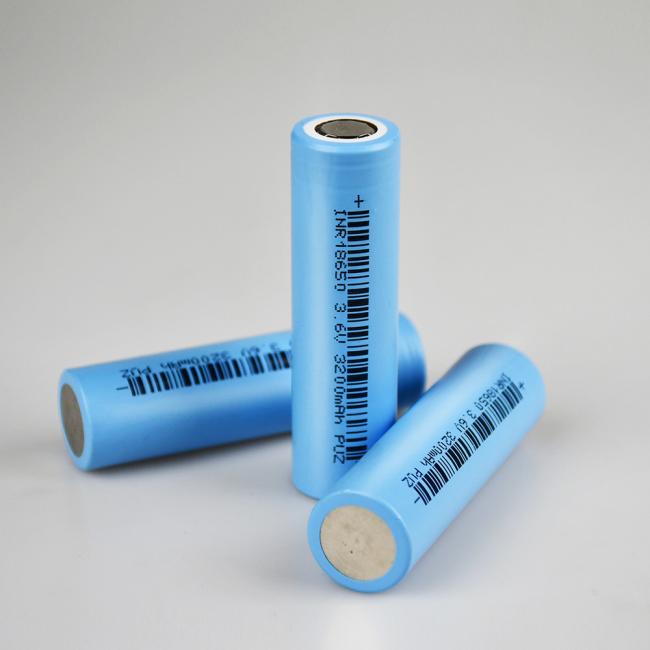

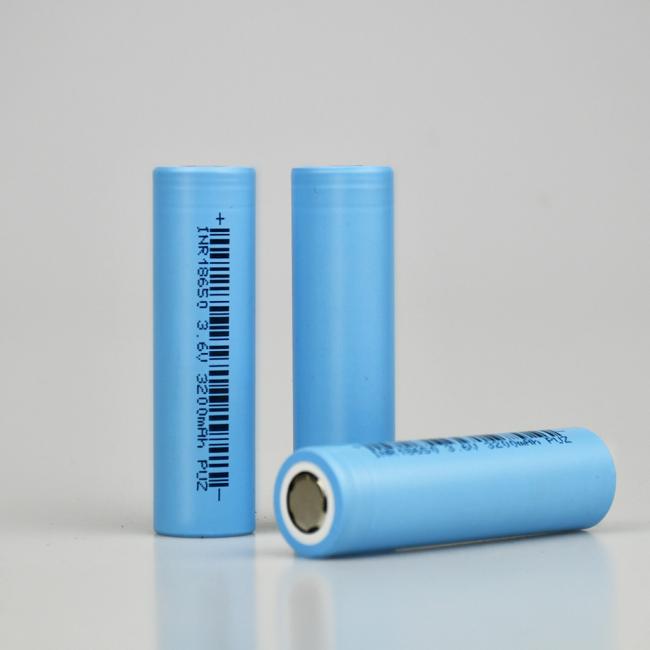

11.744Wh INR18650 3200mAh Lithium Cylindrical Battery Deep Cycle Cell
Price:
negotiable
MOQ:
10PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description
Key Specifications/Special Features:
Rechargeable 3.7V 18650 2200mAh/2400mAh/2600mAh/3200mAh 1s1p Li-ion/Lithium/Lithium Ion Battery Pack with BMS and Connector
charge cut off voltage 4.2V
Discharge cut off voltage 2.8V
Standard charge current 0.2C
Max charge current 1C
charge cut off voltage 4.2V
Discharge cut off voltage 2.8V
Standard charge current 0.2C
Max charge current 1C
Specification
| NO. | Items | Specifications |
| 1 | Nominal voltage | 3.7V |
| 2 | Nominal capacity | 3200mAh 0.2C Discharge |
| 3 |
Charge current
|
Standard Charging:0.5C Rapid charge: 1.0C |
| 4 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 5 |
Charging time
|
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 6 | Max.charge current | 1.0C |
| 7 | Max.discharge current | 1.0C |
| 8 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 9 | Operating temperature |
Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 10 | Storage temperature | -10°C~ +45 °C |
| 11 | Weight | Approx49.5g |
| 12 | Dimension | 18.05±0.2*64.5±0.5mm |
| 13 | cycle time | ≥800times |
