16KW Multipurpose L Type Sealer Machine For Food Package
L-Type Sealer Machine Conveyor Wrapper Shrink Heat Tunnel
Products Details
| Products Name | L-Type Sealer Machine Conveyor Wrapper Shrink Heat Tunnel | Model Number | ZSL-4550 + T-5025 |
| After Warranty Service |
Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
|
Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Warranty | 1 Year, 1 Year except consuming spare parts | Application | Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Driven Type | Electric | Automatic Grade |
Automatic
|
| Core Components | PLC, Motor, Bearing, Frequency Converter | Place of Origin |
Guangdong, China
|
| Warranty of core components | 1 Year | After-sales Service Provided |
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
|
| Air Compressing | 5.5-8.5kg/cm3 | Usage: | Box, Book, Food, Cosmetics, Electronic Product, Etc. |
| Material | Carbon Steel + Powder Painting | Machine Langue | Optional |
Products Specifications
ZSL-4550 is a full automatic sealer machine of “L”Type for PE or POF film. It is applied widely in flow line packing of large batch. It can punch the film automatically, equipped with film feeding device and feeding platform both of adjusted by manually, so that it can meet the packaging needs of products in different width and height. The transport platform is designed with retractor device specifically for small size products. The sealing knife is made by copper alloy of stand wear and tear, the surface of sealing knife is sprayed on a layer which resistant to adhesion and high temperature manufactured by Dupont Teflon, It ensures that the seal doesn’t crack and coking, Achieved no smoke and zero pollution. The transport system is equipped with detection photoelectices of Omron both on horizontal and vertical lines. So, for the thin and small products, testing and package can be done easily. The feeding system is equipped with proximity switches, electronic brakes and geared motors, and it works with the photoelectric and the timer to ensure the exact length of the film delivered. The waste collection system is equipped with proximity switches and geared motors that collect cutting film by rotatablely in automatically. The heating system is equipped with digital temperature controller, solid-state relay, built-in PID function, to ensure the sealing knife’s temperature is sensitive and accurate, and can be set according to your needs. The sealing knife is equipped with anti-cut proximity sensor switch to prevent accidental cutting and protecting effectively the operator and products. Used together with shrink packaging machine, the unmanned operation of production line can be realized.
| MODEL | ZSL-4550 | T-5025 |
| Film | POF, PE | POF, PE ,PVC |
| Packing Speed | 15 - 35 pcs / min | 20 - 85 pcs / min |
| Packing Size | W + H < 400mm, L + H < 450mm, H < 140mm, L ≥ 100mm | W ≤ 400mm H ≤ 250mm, W + H ≤ 480mm |
| Cutter size / Tunnel size | 450*500mm | L1500×W500×H250mm |
| Max Temperature | 230°C | 200°C |
| Electrical | 220V 50-60Hz | 220V/380V 50-60Hz 3 Phase |
| Power | 2.2KW | 16KW |
| Max Current | 10A | 25A |
| Air Compressing | 0.6--0.85MPa | / |
| Table Height | 810+30mm | 810+30mm |
| Machine dimension | L1600*W950*H1400mm | L2000×W1050× H1180mm |
| Machine Weight | 380 kg | 430 kg |

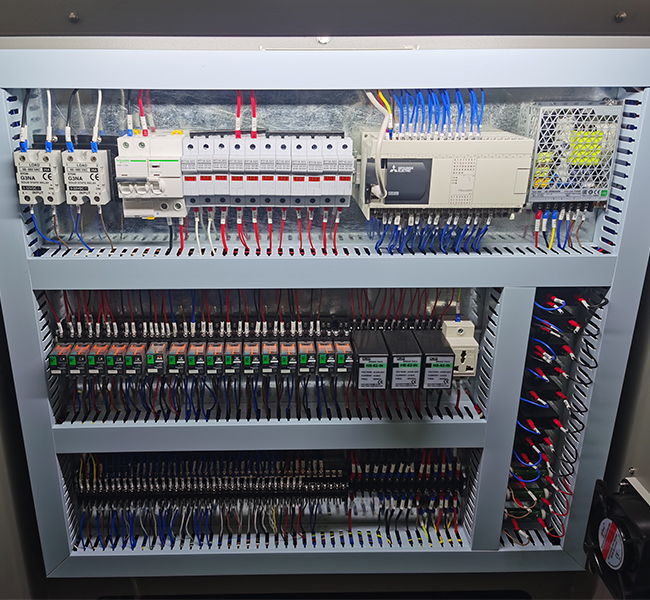

Mitubshi PLC: Adopted Mitubshi pl, Easy operation and stable, also convenient to get the replacement part in your lacation.
Touchable Screen: It’s easy for you make setting check the running status and errors also with solved solutions on it.
Samples: The sealing system is capable of performing smooth and firm sealing line.
Packaging And Delivery
1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Port Guangzhou or Shenzhen
