Direct Feed Sealing Box Shrink Wrap Machine OEM Service For Bottle

OEM Manufacturer Auto Sleeve Shrink Wrapping Machine for Bottles

Product Features

ZS-6040X + ZS-6040PE is full automatic sleeve shrink machine during the packaging process has automatic alignment, pushing stack and other functions, applicable to all types of boxed products for single or multiple number of collective without tray shrink packaging,the machine uses the Mitsubish " PLC " touch screen design, according to the production requirements of automatic completion of 5 layers,4 layers,3 layers,2 layers stacking or a plurality of rows of combined packing.Mainly applied to daily necessities, such as soap, toothpaste, stationery set and others heat shrink packaging, tobacco distribution center of cigarette case packaging or all other shapes packaging goods laminated packaging.

1. The product feed: Belt delivery feeding

2. Suitable film: Single layer PE film for shrinking. Thickness range of film: 30-60micron

3. The temperature of sealing knife: Constant temperature,

4. The driver of sealing knife: Driven by cylinder,

5. Control system: Mitsubishi PLC control, working stabilit

6. Air pressure: 6 bar, filtered through oil and water

7. Equipment with caster and foot cup device, easy to move and fix；

Technical specification

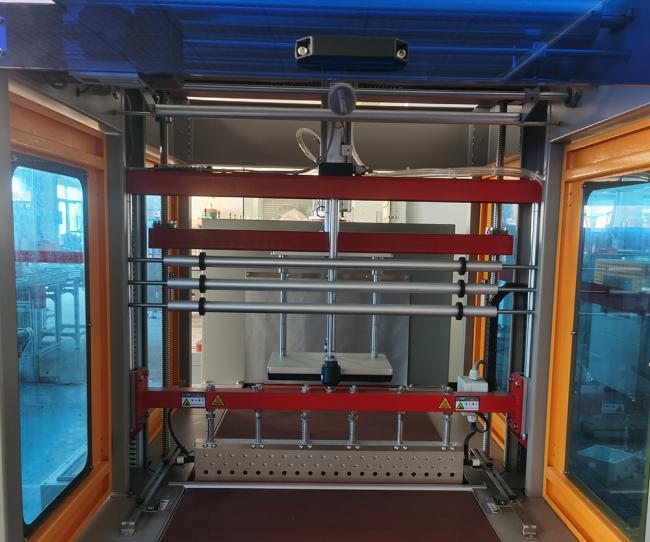

ZS-6040X Auto Straight Sleeve PE Sealing Packing Machine

1. Length of sealing knife: 600mm

2. Height of products can be passed: 350mm

3. Single layer PE film, Maximum width of film: 600 mm

4. Packaging speed: 8-12pcs / minute

5. Power source: 380V, Three phase,2.2KW

ZS-6040PE Heat Cycle Shrink Packing Mchine

1. Tunnel length:1200mm Tunnel width:450mm Tunnel height:200mm

2. Can pass through product height:< 150mm

3. Power supply:380V, Three phase,26KW

4. Suitable packaging film:PE / POF / PE , Heat shrinking packaging film

5. Equipment with casters foot cup device

6. Equipment table height:790mm Adjustable height:50mm

Cutting Blade: Advanced cutting knife, sealing firmly, using specially designed sealing knife, sealing line is firm, no cracking, not easy to stick knife.

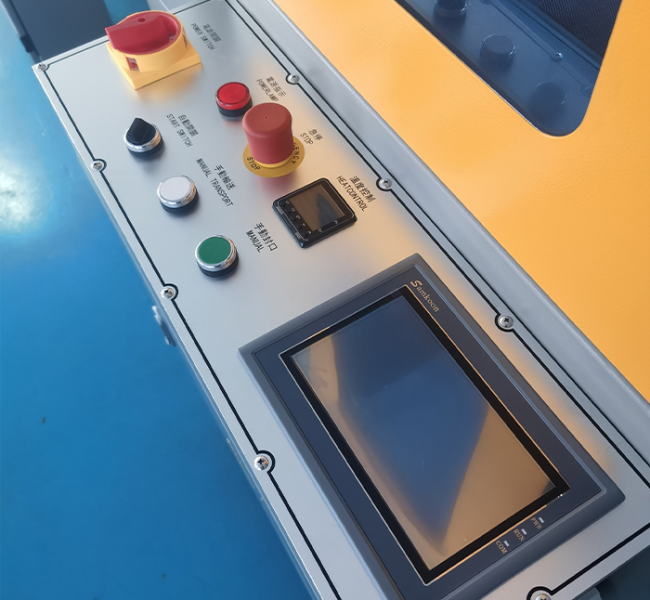

Operator Panel: Aesthetic and minimalist design, Chinese and English notes, Digital temperature controller can control the temperature arbitrarily, HMI supports all languages and can switch between multiple. languages simultaneously for suit different operators. Various parameters can be easily set through HMI.

Sample: Sealing firm, beautiful shrinkage, dustproof and waterproof, tightly bound, not out of position, easy to handle.

Packaging And Delivery

1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.

5. Port Guangzhou or Shenzhen
