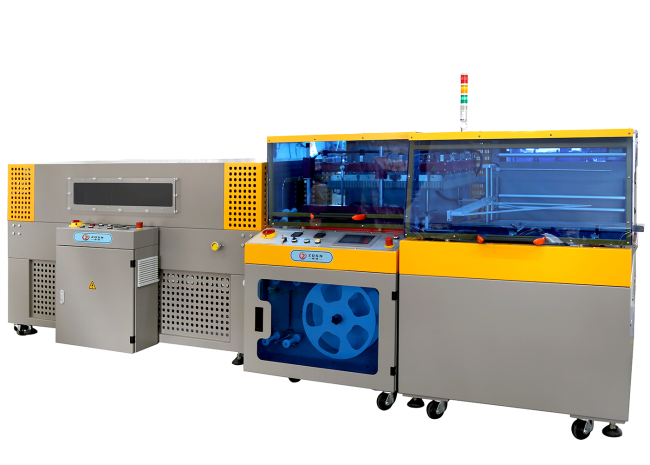

Automatic Vertical Thermal Shrink Sealer Packing Machine for Books
Automatic Vertical Thermal Shrink Sealer Packing Machine for Books
Basic Information
| Model NO | ZSL-5565CL +T-4020 | Type | POF Shrink Film Machine | |
| Heating Mode | Stainless Steel Heating | Power | 3.2 KW + 12 KW | |
| Max Packing Size | L+H≤600mm W+H≤420mm | Sealing Height | H≤200mm | |
| Weight(N/G) | 650 / 515kgs | External Gas Source | 6-8 KG / M2 | |
| Shrink Film | POF / PE | Dimension(L*W*H) | 1960*1590*1320mm | |
| Horizontal Blade Length | 550MM | Longitudinal Blade Length | 650MM | |
| Speed | 30Mters / Minute | Applications | Book, Carton, Box, Ladder | |
| Transport Package | Wooden Box | Specification | Vertical L Bar Sealing | |
| Certification | CE | Trademark | ZOSN | |
| Origin | Guangdong, China | HS Code | 8422303090 | |
| Production Capacity | 50 Sets / Month | Customization | Logo / Color/ Size / Voltage / Material / Parts Brand |
Product Features
ZSL-5565CL +T-4020 is controlled via a PLC which allows the operator to set the different times for the sealing operating,the temperature of the blades and also the length of film that is to be used. The machine has a variable conveyor speed controller which makes the machine ideal for both manual and automatic feeding. The vertical sealing height is adjustable to the height of the product, allowing for the sealing line to be in the center of the package. The machine is easy to operate and high in efficiency.
1.Multiple photoelectric protection detection function, more safe and efficient to use.
2.International famous electrical components, green cutting process, so that the seal straight and neat.
3.The advanced Japanese Mitsubishi PLC programmable controller is easy to operate and has the function of safety protection and alarm.
4.Omni-directional safety protection measures (such as sealing and cutting parts with Plexiglas protective cover, etc.), put an end to man-machine injury accidents.
5.Automatic feeding, length can also be automatically adjusted by the combination of electric eye and timer. Equipped with induction motor, automatic waste winding.
6.The sealing line can be easily adjusted in the middle of the product.
7.Suitable for packaging different shapes of products, single or combination packaging.
Product Description
| Model | ZSL-5565CL | T-4020 |
| Power | 3.2kw | 12kw |
| Power Supply | AC 220V 1PH 50Hz | AC 380V 3PH 50Hz |
| Max. Packing Size | L+H≤600mm W+H≤420mm H≤200mm | W300 × H150mm |
| Packing Speed | 8-30 Pcs / min. | 0~30m / min. |
| External Air Source | 6-8kg/cm2 | / |
| Shrink Film | POF / PE | POF / PE / PVC |
| Machine Size L×W×H | 1960×1590×1320mm | 1700×950×1130mm |
| G./N. Weight | 720 / 650kgs | 360 / 300kgs |
Product Display

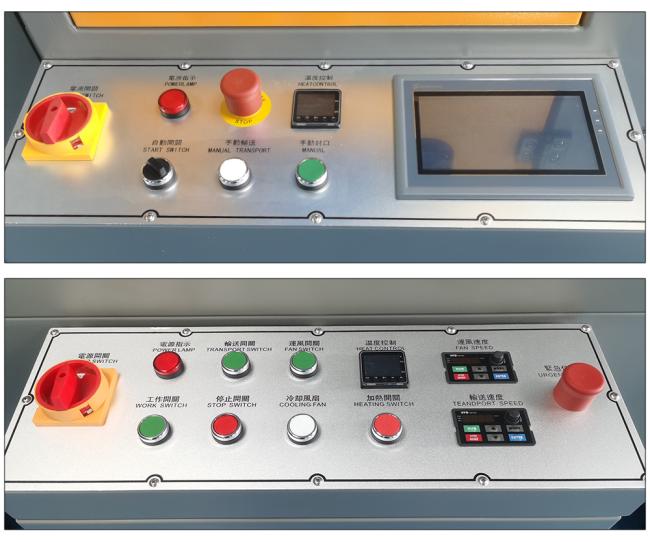

Operator Panel: Aesthetic and minimalist design, Chinese and English notes, Digital temperature controller can control the temperature arbitrarily, HMI supports all languages and can switch between multiple. languages simultaneously for suit different operators. Various parameters can be easily set through HMI.
Thermal cycle visual shrink packaging tunnel keeping constant temperature. Can be set different temperature to suit for different film, wind direction and speed also can be adjusted to
Packaging And Delivery
1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Port Guangzhou or Shenzhen
