25A 30m/Min Automatic Shrink Wrap Machine Heat Shrink Wrap System
Side Sealing Packing Machine Heat Shrink Wrapping Machine
Product Feature
ZS-450T-CF + ZS-4530T economical automatic edge sealing shrink packaging machine was developed according to the market customers different requirements of a medium speed type edge sealing machine.it to pof folded membrane for packaging material.adopting photoelectric products for automatic detection, automatic unmanned packaging high efficiency, suitable for packing various kinds of product of different sizes and shape.

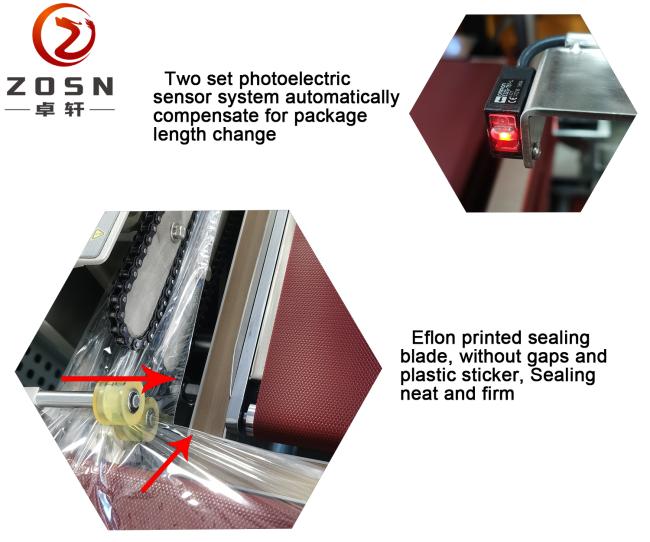

1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.

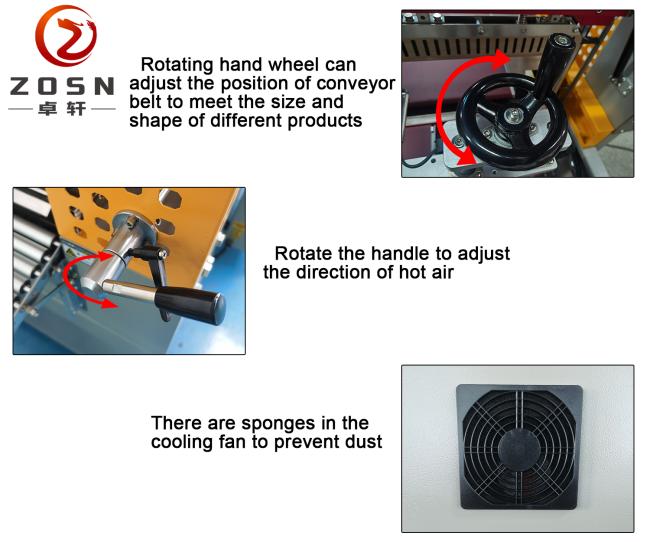

2. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.

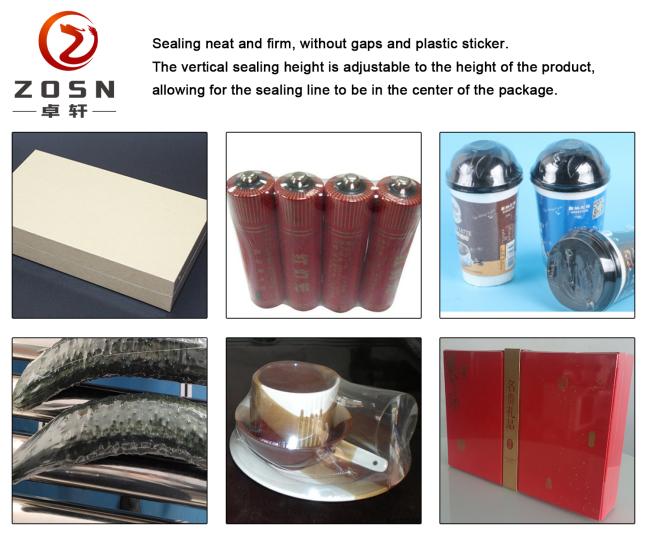

3. Different products with different sizes can be packed together as promotional package.

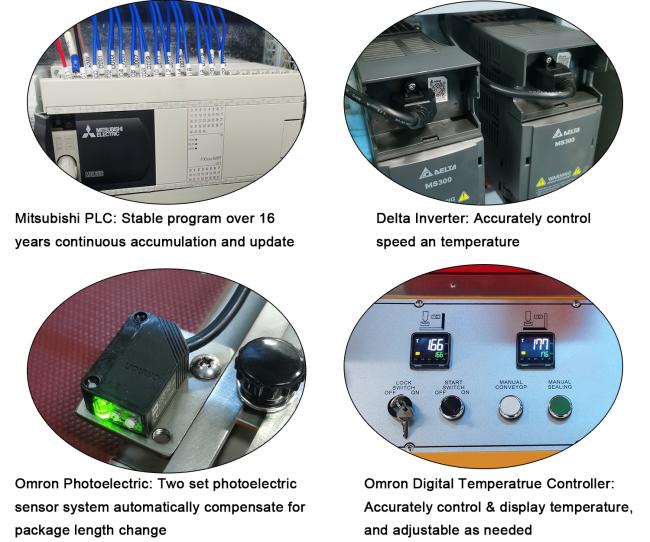

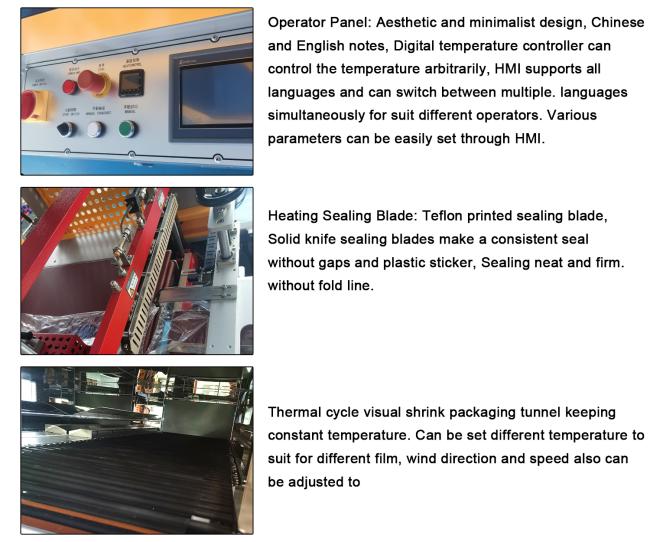

4. Adopt omron brand parts such as temperature controller.
5. Alarm for scrap film break or full in operating panel.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
9. Visiable window in shrink tunnel.
Basic Information
| MODEL | ZS-450T-CF | ZS-4530T |
| Film | POF/PE | POF |
| Packing Speed | 20-50 pcs / min | 30m / min |
| Packing Size | W+H≤400mm, H≤150mm, L≥100mm | W≤350×H≤200mm, W+H≤480mm |
| Cutter size / Tunnel size | 450mm | L1800 × W450 × H300mm |
| Max Temperature | 280ºC | 200°C |
| Electrical | 220V/380V 50/60HZ | 220V/380V 50-60Hz 3 Phase |
| Power | 3.2KW | 16KW |
| Max Current | 4A | 25A |
| Air Compressing | 0.6--0.85MPa | / |
| Table Height | 850+30mm | 850+30mm |
| Machine dimension | L1920 x W1560 x H1390mm | L2300 × W650 × H1560mm |
| Machine Weight | 650 kg | 260 kg |

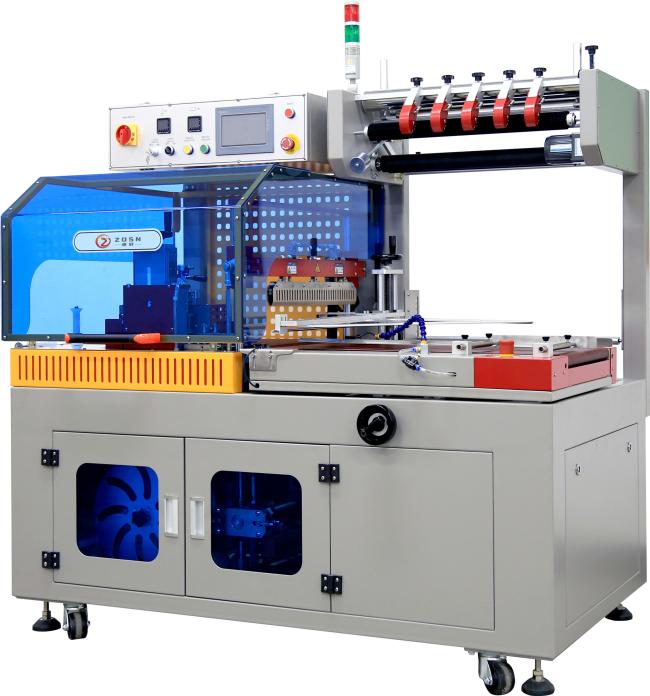

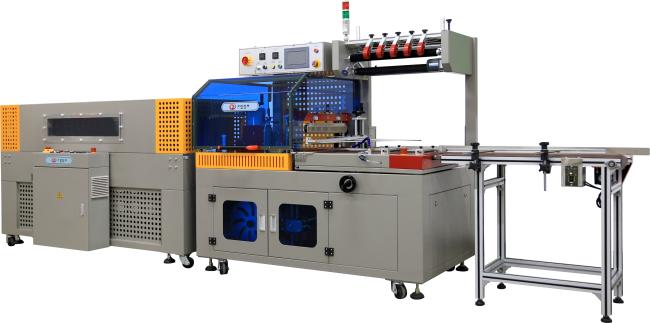

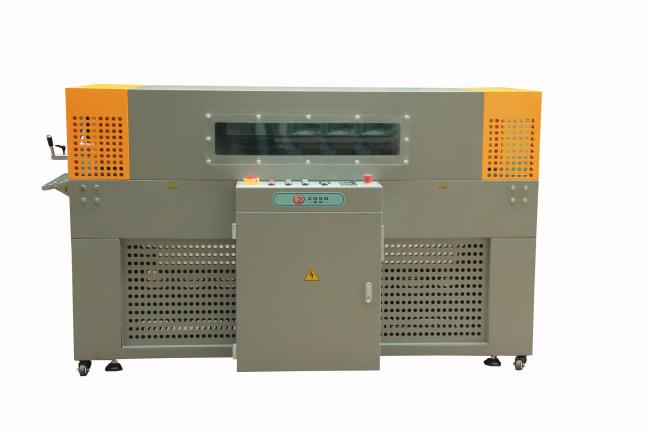

Product Display
Standard Safety Performance
1. The transverse sealing knife is equipped with automatic anti-wrong cutting product device.
2. There are protective devices or warning signs at unsafe locations of the machine.
3. The machine is equipped with emergency stop control device, it can stop working and restore all the organs to the initial state after pressing the emergency stop switch.
Packaging Details
1. Spray anti-rust oil
2. Fix the machine on the pallet
3. The machine is also wrapped with stretch film and sponge pads, prevent the machine from impact, moisture, dust
4. Covered with sea export plywood case.
5. Loading Port: Guangzhou or Shenzhen
