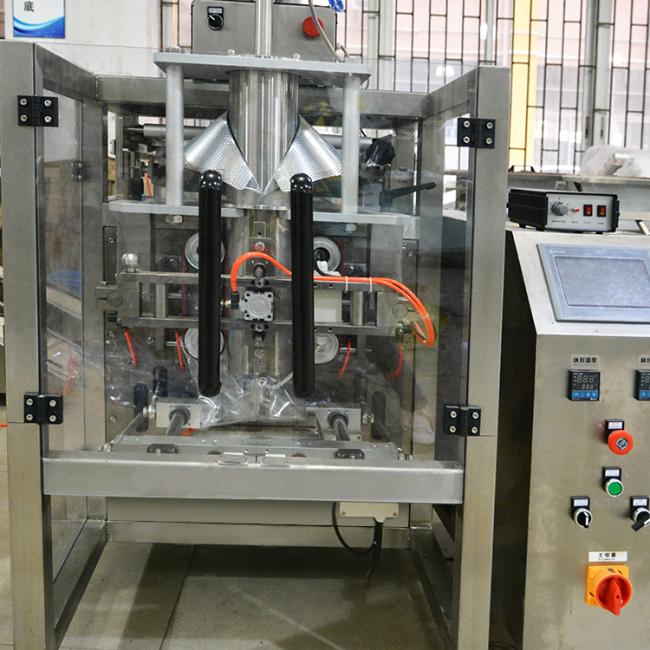

2.2KW Vertical Packaging Machine

ZS-420B Full Automatic Vertical Granule Packing Machine Single bucket loading

Product Feature

Capacity:10-30bag/min

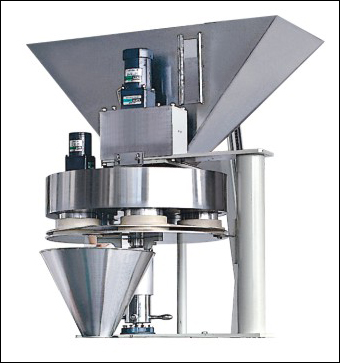

Measuring range:150ml-1300ml

Bag Size:(L)50-300,(W)80-200mm

Max Film Width:420mm

Sealing Type: back seal

Power:2.2kw

Net Weight:450kg

Voltage:220V,380V/50Hz

Packing Material:paper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.

Overall Size:(L)1320×(W)920×(H)1392mm

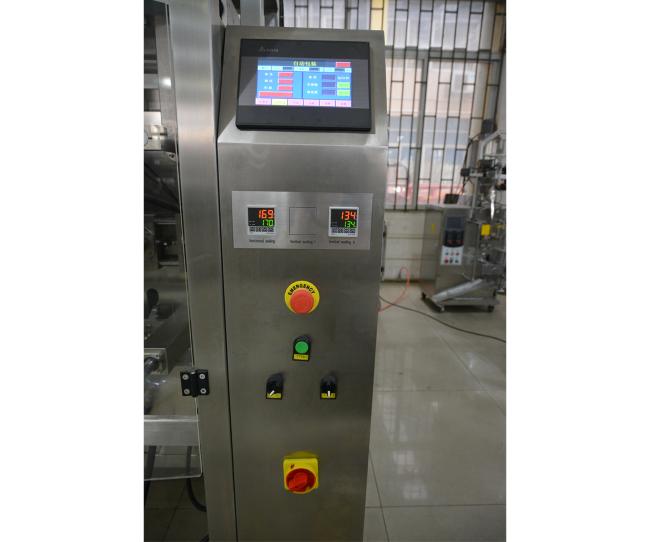

1. English and Chinese screen display (other language available)

2. PLC control, function is more stable, adjustment any parameters no need stop machine.
3. Servo motor pulling film, position accurately
4. Temperature independent control system, precision get to ±1℃
5. Horizontal, vertical temperature control, suitable for various of laminated film, PE film packing material
6. Feeding, Weighing, Filling, Bag-making, Sealing, Cutting, Packing, Date printing in one operation.
7.Various bag type: pillow sealing, 3 side seal, 4 side seal.
8. Work circumstance quite, low noise.

9. Various bag type: pillow bag, gusset bag, stand up bag, etc.

Specification:

Model:MK-802

Motive powder:motor

Power Source:220V/50HZ

Power:150W

Printing speed:0-150min

Letter size:2*4*15mm(according to clients)

Print lines:1-3 lines

Consumable items:Thermal transfer ribbons

Machine size:400*210*250mm

Weight:7kg

Single bucket elevator:

Lifting Height:2.5m

Lifting speed:16m/min

Conveying capacity:3 times/min(0.5m³)

Power: 220V 550W

Machine size: L850xW744xH3983mm

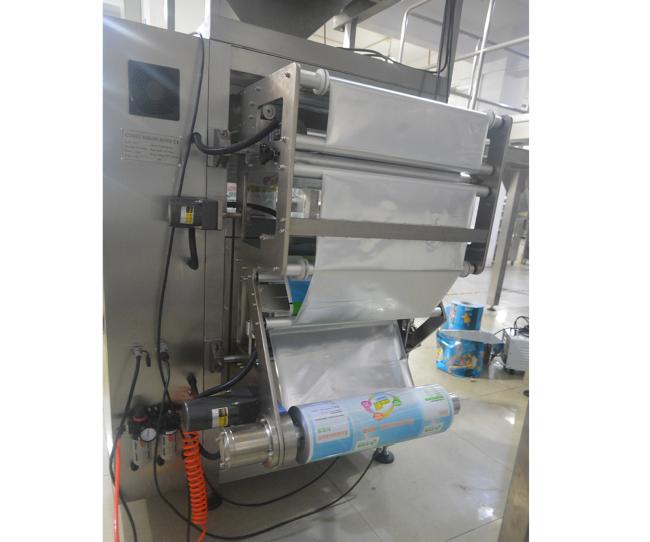

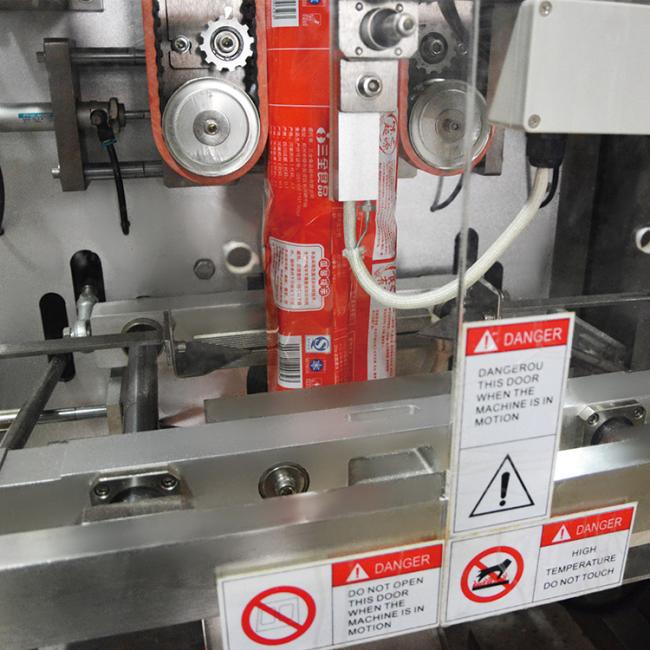

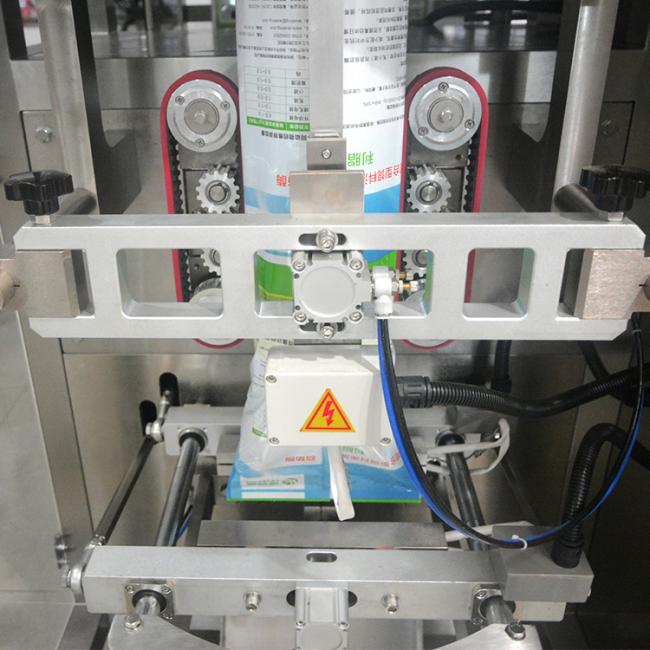

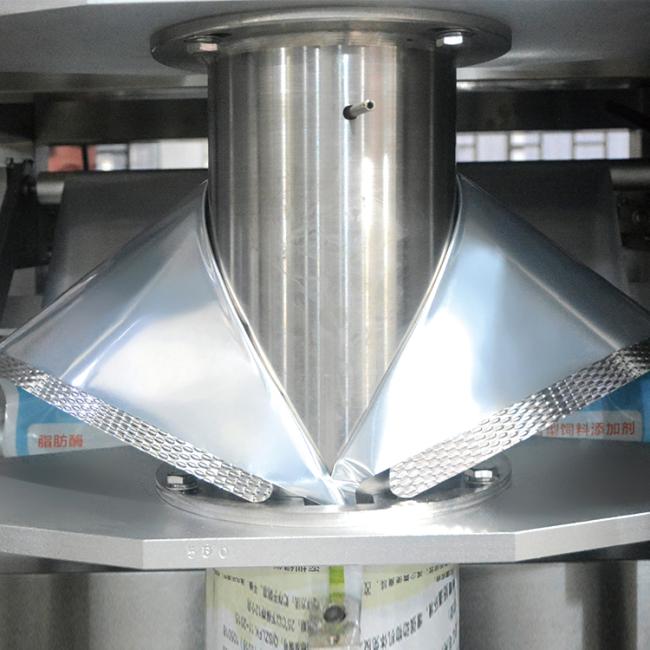

Product Display

Packaging and Delivery

Packaging Details

1. Dedust & Cleaning
2. Lubricate Drive Parts
3. Divide Machine Into Modules
4. Wrap Modules With Plastic Film
5. Packing Modules into Plywood Cases
6. Shipping mark on the cases
7. Any special requirements can be discussed.

8. Loading Port: Foshan, Guangzhou or Shenzhen port
