Dehydrating Breathers for Distribution Transformers in Accordance with EN 50216-5 / DIN 42567

Product Description

The transformer dehydrating breather Type in accordance with DIN 42567 / EN 50216-5 remove practically all moisture from the air that flows through the breather into the conservator when the transformer is cooling down.
This has the effect of largely preventing any reduction of the dielectric strength of the insulation due to moist ambient air and any formation of condensation in the conservator. Thus the transformer dehydrating breathers increase the operational integrity of the transformer. In order to guarantee proper air tightness the oil bowl must be filled with oil up to the marked minimum limit.As drying agent we use silica gel with a grain size of at least 3 mm.
All types are available with a filling capacity of either 1 kg or 0.5 kg. The dehydrating breathers Type can also be supplied with glass cylinders. The transformer dehydrating breathers  meet the requirements of DIN 42567 and EN 50216-5.

Your benefits at a glance

• UV- and corrosion-resistant powder coating
• Oil bowl made of UV-resistant acrylic glass (SAN)
• High quality drying pearls Chameleon Orange from BASF

Features

• Very good absorber of moisture
• Freshly regenerated gel is very efficient
• Dry down air to a dew point

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 piece.

Q2: Do you offer sample?

A: Yes, we can provide you a sample.

Q3: What is your payment term?

A: 100% TT in advance.

Q4: What is your lead time?

A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!

Q5: Are you a manufacturer or a trader?

A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.

Q6: Can you make the packing and logo as customer request?

A: Yes we can.

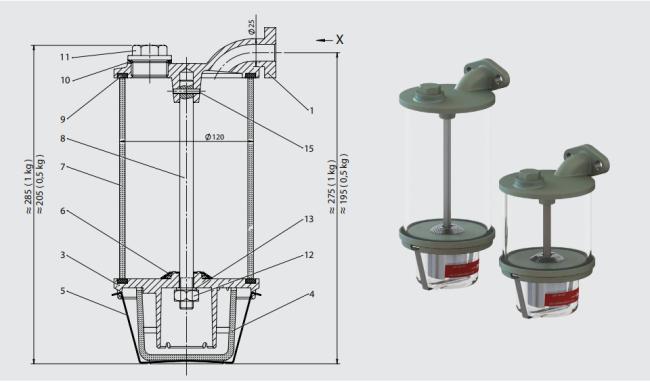

Product picture
