Infrared Bridge 2600mm 400mm Blade Granite Wire Saw Cutting Machine 5000kg
350-400 Blade Diameter 11kw Infrared Bridge Cutting Saw
Description

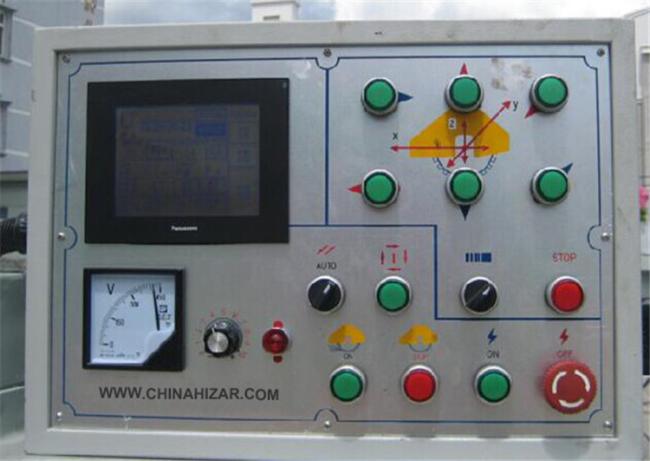

1.The infrared bridge stone cutting machine is simple installation and easy operation.All axis(X.Y Z)movements of the stone cutting machine are coordinated and controlled by imported PLC.
2.The stone cutting machine has a high-strength cast-iron platform,bridge, sliding rail, blade holder to guarantee the machine a good stability. Durability and smooth running are two important characteristics of the stone cutting machine.
3.The infrared bridge stone cutting machine bridge traverse along the oi-immersed V shaped guiding rail. The stone cutting machine spindle slides on oil immersed double-V shaped cast iron guides.
4.Guides and rails are well protected from water and dust is one of the selling points of stone cutting machine.
5.Working table powered hydraulically can tit at the angle of 85°and rotate 360( each 45 °automatically and any degree manually) is an important feature of the stone cutting machine.
6.Stone cutting machining has the charcteristics of high cutting efficiency, high cutting accuracy and high stability, especially for high-value granite and large-size marble.
Specification
| Product Name | 350-400 Blade Diameter 11kw Infrared Bridge Cutting Saw |
| Application | For cutting stone |
| Product Code | HQQ-400 |
| Blade diameter | 350-400mm |
| Main Motor | 11kw |
| Dimension(L*W*H) | 6200*4800*2600mm |
| Water Consumption | 3.5m³/h |
| Weight | 5000kg |
Product Pictures
