Gantry 1600mm Blade 75kw Stone Cutting Machines Granite Block Cutting Machine 7.3 Ton
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
30days
Brand:
Hizar
Product Description
1600mm Blade Diameter 75kw Main Motor Power Integral Doulble-direction Gantry Type Large Block Cutter
1. Description
Improved from the single-direction bridge type cutter,it is equipped with all the system and functions possessed by single-direction cutter and can cut both vertically and horizontally.
When cutting block to the maximum depth with vertical disc,it also can complete the bottom horizontal cutting of block with good finish and high yield.
2. Specification
| Product Name | 1600mm Blade Diameter 75kw Main Motor Power Integral Doulble-direction Gantry Type Large Block Cutter |
| Application | For cutting stone |
| Product Code | HGQ-1600D |
| Blade diameter | 1600mm |
| Horizontal diameter | 600mm |
| Main Motor | 75kw |
| Horizontal motor power | 11kw |
| Gross power | 68kw |
| Dimension(L*W*H) | 7300*4000*4300mm |
| Water Consumption | 5.5m³/h |
| Weight | 6600kg |

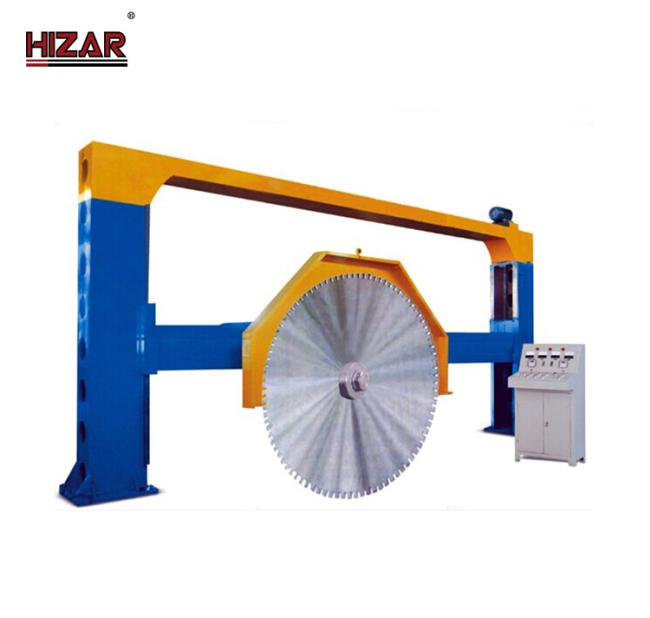

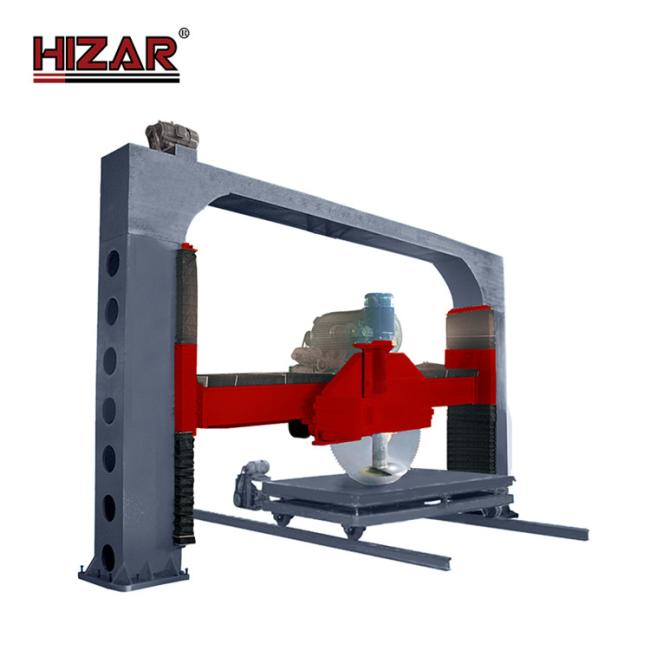

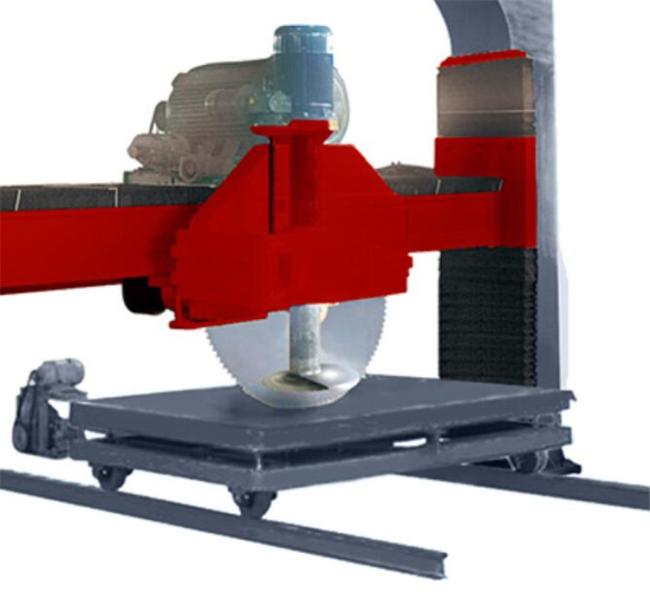

3.Product Pictures
