Safety Rod Pin SW Universal Nano Sand Mill 5L High Viscosity 30L-2000L/H
Technological Indicators

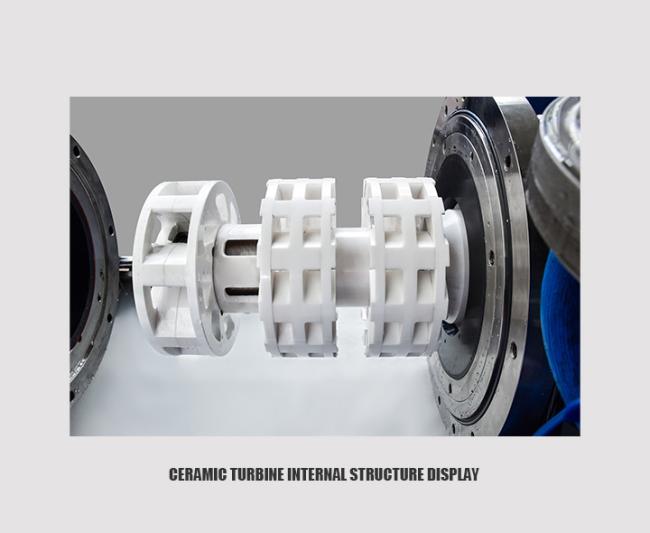

SW universal nano sand mill can be installed with TurboMax turbine grinding system, Boyee's exclusive patented. It can provide gentle and detailed grinding and dispersion effects, boost grinding quality and precision, and reduce loss and maintenance costs.
TurboMax turbo type,Rod pin,Disc-type
SW series sand mill is large in barrel diameter, short in flow and is installed with a filter for dynamic discharge and a larger flow rate. It has a wider range of material viscosity. We also provide rod-pin and disc rotor structures and various options of textures for configuration at your own discretion. Dynamic discharge of filter
Filter Dynamic Discharging
- Axle discharge
- Dynamic and static ring discharge
- The end (rear cover) discharge
Rod-pin rotor structure
The rod-pin rotor structure has high linear speed, which can form continuous and strong grinding in the grinding chamber, and has a stronger impact and grinding effect on the material. It is suitable for grinding needs with difficult dispersion, high viscosity and no special requirements for material structure.
Large flow | High viscosity | Installed with safety protection equipment
Worry-free, Highly-efficient, Low-cost Grinding and Dispersion Solutions
Sound adaptability and wide application field Applicable for large flow and high viscosity products Ergonomic design Dual-end face mechanical seal Equipped with pressure automatic protection device Optional ceramic, plastic and alloy materials Grinding systems and discharging methods for selection Easy to be operated and installed
World’s Leading Grinding Performance by Carrying through Innovation Genes
- Fineness: 30μm-2μm
- Solvent system: water-based, oily
- Capacity: 30L-2000L/h
- Viscosity: ≤ 100,000 CPS
- Grinding media ≥ 0.3mm
From Metal-free to Aseptic Production, More Flexible Material Selection
Boyee SW universal nano sand mill, a model designed for universal use, can be installed with TurboMax patented turbine and disc and rod-pin grinding systems. It offers you an ideal choice for grinding and dispersion of high-viscosity products. Its simple shape and compact structure enhances aesthetics of the equipment. Its grinding chamber at the ideal height is ergonomically designed and thus makes easy equipment maintenance and cleaning. It adopts dual-end mechanical seal and cooling liquid that blends with the material with better performance. Moreover, it is installed with an automatic pressure protection device and a comprehensive electrical protection system to ensure a safe working environment.
Specification
| Model | Grinding container volume(L) | Mill machine driving power(KW) | Disperser speed(r/min) | Grinding media diameter(mm) | Machine weight(kg) | Size(mm) |
| SW-5L | 4.5 | 15 | 0-2200 | ≥0.2 | 750 | 1800×1500×1650 |
| SW-10L | 11 | 18.5 | 0-1320 | ≥0.2 | 850 | 1870×1520×1670 |
| SW-30L | 34 | 37 | 0-1124 | ≥0.1 | 1300 | 2168×863×1415 |
Application
