Red Kidney Bean Chromatic Ccd Color Sorter Machine With Remote Assistance
Red Kidney Beans Chromatic Ccd Color Sorter Machine With Remote Assistance
White Red Kidney Beans Color Sorter Kidney Bean Sorting Machine With RGB CCD Sensor

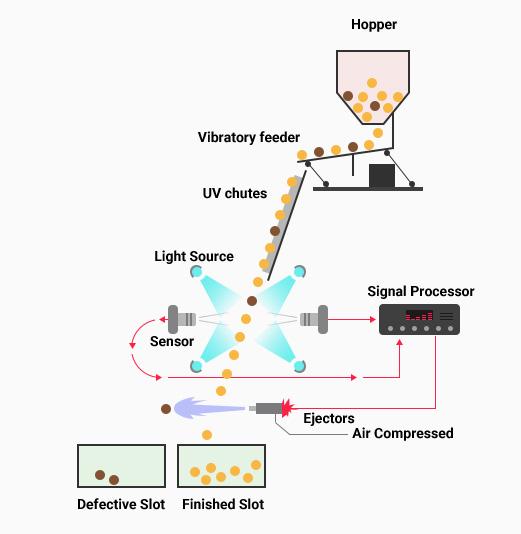

When the machine is starting, kidney beans in hopper under the action of vibrator is uniformly distributed into each chute. While kidney beans are dropping,the CCD signal is in testing. If the cameras catch the unqualified kidney beans or impurities in the beans, the ejector will blow the defective beans into the hopper.
| Model | 6SXM-256JM4 |
| Output(T/h) | 2-3 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1200(±5%) |
| Diamension(mm) | 1800*1620*2040 |
Sorting Material
Technical Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
