Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10 Ohms ±20% 6 A NTC Thermistor Thermal Resistor MF73T-1 10/6

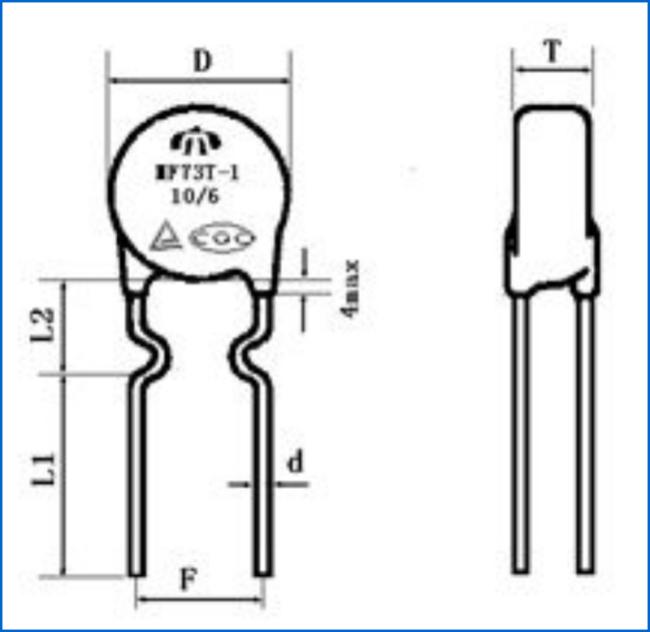

Dimension Of The Thermal Resistor MF73T-1 10/6
| D | L1 | L2 | F | T | d | Coating | Lead material |
| Max15.5 | Min17 | 5±2 | 7.5±1.5 | Max6.0 | 0.8±0.05 | black silicone | Tinned copper wire |
Specification Of The Thermal Resistor MF73T-1 10/6
| P/N | MF73T-1 10/6 |
| Resistance @ 25°C | 10.0 Ω ± 20% |
| Max Steady State Current | 6A |
| Resistance @ 100% of Max Current |
0.126 Ω |
| Thermal Time Constant | 65 sec |
| Dissipation Constant | 13mW/°C |
| Max rated power | 3.0W |
| Max Recommended Capacitance @ 240VAC | 470µF |
| Operating Temperature Range | -40 ~ 200℃ |
| B value B25/50 | 3000±10% |
Body diameter Φ13mm Of The Thermal Resistor MF73T-1 10/6
| P/N |
R25 ±20%(Ω) |
Thermal sensitive index B±10%(K) |
Max steady state current Imax(A) |
Approx R of Max current Rmax(Ω) |
Max power dissipation Pmax(W) |
Max impulse capacitance (uF) 240VAC |
| MF73T-1 1/9 | 1 | 2600 | 9 | 0.032 | 4.0 | 680 |
| MF73T-1 1.3/9 | 1.3 | 2600 | 9 | 0.032 | 680 | |
| MF73T-1 1.5/9 | 1.5 | 2600 | 9 | 0.042 | 680 | |
| MF73T-1 1/9 | 1 | 2600 | 9 | 0.043 | 680 | |
| MF73T-1 2.5/8 | 2.5 | 2600 | 8 | 0.048 | 680 | |
| MF73T-1 3/8 | 3 | 2600 | 8 | 0.052 | 680 | |
| MF73T-1 4/7 | 4 | 2800 | 7 | 0.068 | 560 | |
| MF73T-1 5/7 | 5 | 2800 | 7 | 0.078 | 560 | |
| MF73T-1 6/6 | 6 | 2800 | 6 | 0.090 | 560 | |
| MF73T-1 7/6 | 7 | 3000 | 6 | 0.098 | 560 | |
| MF73T-1 8/6 | 8 | 3000 | 6 | 0.104 | 560 | |
| MF73T-1 10/6 | 10 | 3000 | 6 | 0.126 | 560 | |
| MF73T-1 12/5 | 12 | 3200 | 5 | 0.146 | 560 | |
| MF73T-1 15/4 | 15 | 3200 | 4 | 0.155 | 560 | |
| MF73T-1 16/4 | 16 | 3200 | 4 | 0.158 | 560 | |
| MF73T-1 20/4 | 20 | 3200 | 4 | 0.192 | 560 | |
| MF73T-1 30/3.5 | 30 | 3200 | 3.5 | 0.237 | 560 | |
| MF73T-1 47/3 | 47 | 3200 | 3 | 0.340 | 560 | |
| MF73T-1 60/2.5 | 60 | 3200 | 2.5 | 0.420 | 560 | |
| MF73T-1 80/2.5 | 80 | 3200 | 2.5 | 0.820 | 560 | |
| MF73T-1 120/1.8 | 120 | 3400 | 1.8 | 0.994 | 560 |
Storage conditions Of The Thermal Resistor MF73T-1 10/6
1 Storage temperature: -10℃～+40℃;
2 Storage humidity: ≤75% RH;
3 Avoid storing in environments with corrosive gases and direct sunlight;
4 After the package is opened, it needs to be resealed and stored;
5 Shelf life: 1 year
6.Welding and use conditions
6.1 When soldering with a soldering iron, the welding point should be at least 6mm away from the root of the resistor body, the soldering temperature should be lower than 360℃, and the soldering time should be as short as possible.
6.2 When cutting the product leads to the required length, pay attention to the minimum length ≥ 6 mm
