Description Of The Battery Packs NTC Thermistors
These sensors consist of small NTC chip soldered between stranded AWG #24, 105 °C resistant, PVC (UL2651).
Terminations are solder dipped. They are lacquered and insulated with a black epoxy coating.
Features Of The Battery Packs NTC Thermistors
- Easy installation
- Small size 4*15mm max
- High accuracy 1%
- Famous brand terminal and housing- JST
- Fast Response 10sec
- UL2651 24AWG 105C PVC Strand Cable
- Custom made
Application Of The Battery Packs NTC Thermistors
• Temperature measurement, sensing, and control
• On battery packs, heat-sinks, tubing, enclosures, etc.

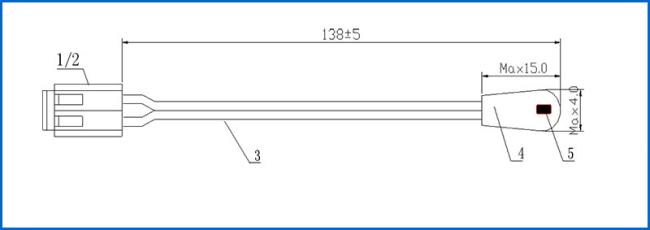

Dimension And Materials List Of The Battery Packs NTC Thermistors
| NO. | Material name | Type/model | Quantity | ||||||||||
| 2-1 | Terminal | SHF-001T-0.8BS | 2PCS | ||||||||||
| 2-2 | Connector | H2P-SHF-AA | 1PCS | ||||||||||
| 2-3 | Cable | UL2651 24AWG 2P Black | 1PCS | ||||||||||
| 2-4 | NTC Thermistor | R25=10KΩ±1% B25/85=3435K±1% | 1PCS | ||||||||||
| 2-5 | Epoxy | Black Epoxy Resin | / | ||||||||||
Electrical Characteristic Of The Battery Packs NTC Thermistors
| NO. | Item | Symbol | Test Conditions | Min. | Nor. | Max. | Unit | ||||||||
| 3-1 | Resistance At 25℃ | R25 | Ta=25℃±0.05℃ PT≦0.1mW |
9.90 | 10.00 | 10.10 | KΩ | ||||||||
| 3-2 | Resistance At 85℃ | R85 | Ta=85℃±0.05℃ PT≦0.1mW |
/ | 1.461 | / | KΩ | ||||||||
| 3-3 | B Value | B25/85 | (3853.887* LnK) | 3400.7 | 3435.0 | 3469.4 | K | ||||||||
| 3-4 | Dissipative coefficient | δ | Ta=25℃(in air) | / | 8.0 | / | mW/℃ | ||||||||
| 3-5 | Response Time-In liquid | τ | 25℃→85℃ T1=25+(85-25)*63.2%=62.92℃ |
/ | / | 10.0 | Sec | ||||||||
| 3-6 | Insulation test | / | DC500V 1Sec | 100 | / | / | MΩ | ||||||||
Maximum use grade Of The Battery Packs NTC Thermistors
| NO. | Item | Specification | Unit | ||||||||||||
| 4-1 | Operation Temperature Range | -30 ～ +105 | ℃ | ||||||||||||
Soldering Iron Condition Of The Battery Packs NTC Thermistors
| NO. | Item | settings/parameters | |||||||||||
| 7-1 | Temperature of Soldering Iron-tip | T≤360℃ | |||||||||||
| 7-2 | Soldering Time | S≤3Sec | |||||||||||
| 7-3 | Distance From Thermistor | L≥10mm | |||||||||||
Storage Conditions Of The Battery Packs NTC Thermistors
1. Ambicnt Temperature: -10℃～+40℃
2. Relative Humidity: ≦75%RH
3. Keep away from corrosive atmosphere and sunlight
4. Period of Storage: 1 year
