4 Port Analog Video Digital Optical Converter Fiber Optic Extender SC ST FC Port
4 Port Analog Video RS232 Data Fiber Optic Converter
Key Features of Video Optic Converter
- Bi-di transmission on 1 fiber with WDM
- Without EMI, RFI and ground loop
- Low optical link loss – max 30dB
- Hot plug-and-play with switch power supply
-
Lightning-proof solution
Technical Parameters of Fiber Optic Converter
| Video | |
| Channel Quantity | 4ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data | |
| Channel Quantity | 1ch, from control center to camera |
| Data protocol | RS485 |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber |
Single mode (9/125um) 20Km multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
Application of Video Media Converter
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
- Military monitoring (frontier defense, national defense)
- Electronic power oil field, TV station program broadcasting
- Gymnasium (live video and audio transmission)

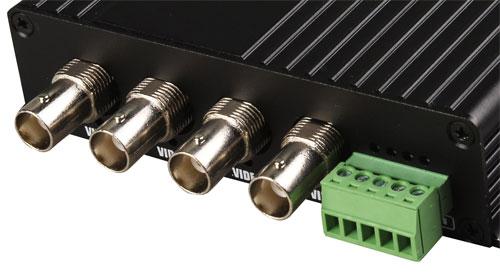

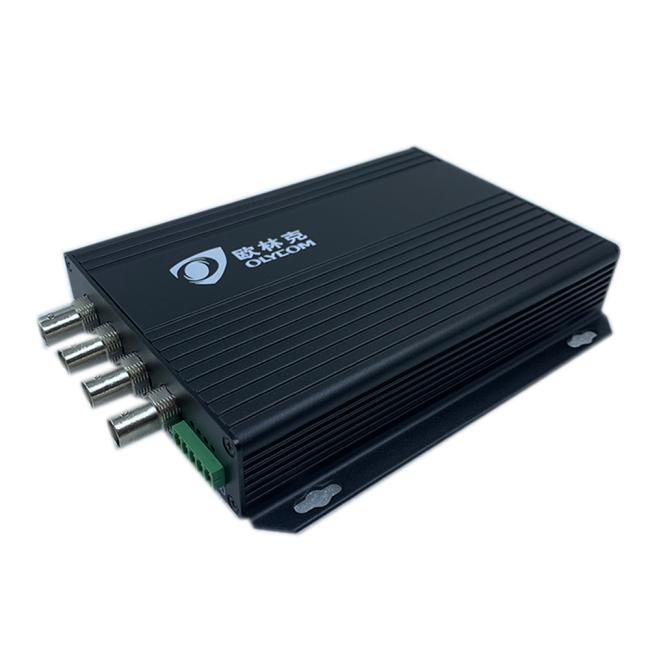

Product Images of Analog Video Converter
Introduction of Video Fiber Extender
- The Olycom data video optical fiber converter offers you the ultimate solution for transmitting up to 4 channels of video and 1 channel of RS485 data signals on optical fiber.
- With its versatile standalone and 3U rack options, it provides the flexibility you need to optimize your network setup.
- Built with a robust metal casing, it offers durability and reliability.
- Plus, with a working distance of up to 80km on single mode fiber and 1km on multimode fiber, this converter is the perfect choice for long-distance transmission.
FAQ of Video Data Converter
1. Who are we?
We are based in Guangdong, China, start from 2005, sell to Western Europe(15.00%), Eastern Europe(15.00%), Southern Europe(10.00%), South America(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%), Mid East(5.00%), Northern Europe(5.00%), Oceania(5.00%) ,Eastern Asia(5.00%). There are about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
